| Product Name: | Lanthanum Gallium Silicate (LGS) | Chemical Formula: | La3Ga5SiO14 |
|---|---|---|---|
| Growth Method: | Czochralski | Hardness: | 6.6 Moh's |
| Density: | 5.754 G/cm3 | Melt Point: | 1470℃ |
| Thermal-expansion Coefficient: | α 11=5.10 α 33=3.61 | Acoustic Velocity, SAW: | 2400 ( M/sec ) |
| Frequency Constant, BAW: | 1380 ( KHz/mm ) | Temperature Frequency Coefficient: | 1.6х10-5 |
| High Light: | Multifunctional LGS Langasite,Piezoelectric Crystal Material Multifunctional,Piezoelectric Crystal Material La3Ga5SiO14 |
||

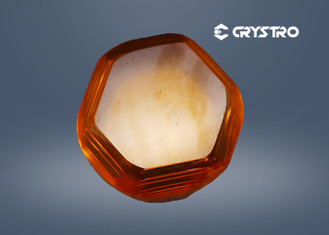

LGS (Langasite La3Ga5SiO14)belonging to the space group P321, point group 32, is a new piezoelectric material,
The main applications of langasite crystals now are SAW device BAW device and electro-optic Q-switch.
| Crystal Structure | rigonal system, group 33 a= 8.1783 c = 5.1014 |
| Growth Method | Czochralski |
| Hardness | 6.6 Moh's |
| Density | 5.754 g/cm3 |
| Melt Point | 1470 o C ( phase transition point: N/A) |
| Thermal expansion (x10-6/ oC) | α 11: 5.10 α 33: 3.61 |
| Acoustic velocity, SAW | 2400 ( m/sec ) |
| Frequency constant, BAW | 1380 ( kHz/mm ) |
| Piezoelectric coupling | K2 (%) BAW: 2.21 SAW: 0.3 |
| Dielectric Constant | ε11/ε0=18.27 ε33/ε0=56.26 |
| Piezoelectric Strain Constant | d11=6.3 d14=5.4 |
| Inclusions | N0 |
