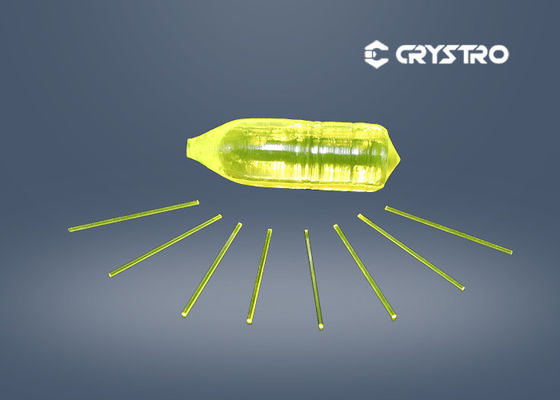

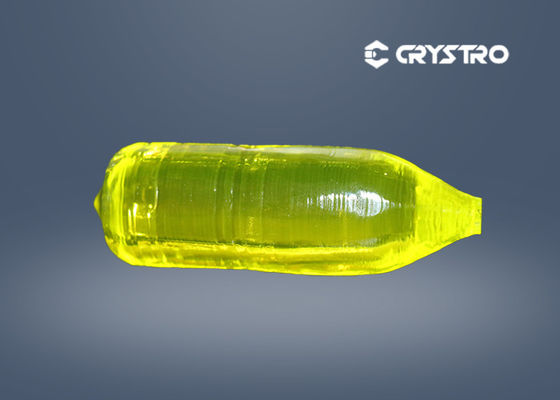

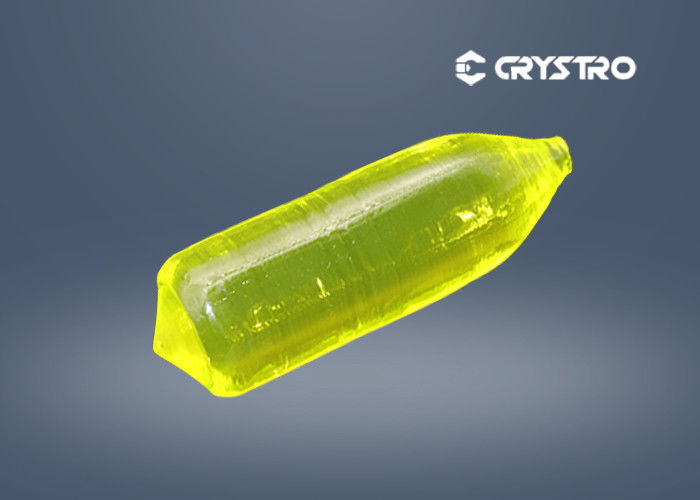

Lutetium Alluminium Garnet Scintillation Crystals LED Lighting Ce LUAG Crystal

Lutetium Alluminium Garnet Scintillation Crystals LED Lighting Ce LUAG Crystal
Lutetium Alluminium Garnet Scintillation Crystals LED Lighting Ce LUAG Crystal Lutetium Alluminium Garnet Scintillation Crystals LED Lighting Ce LUAG Crystal Lutetium Alluminium Garnet Scintillation Crystals LED Lighting Ce LUAG Crystal

Large Image :  Lutetium Alluminium Garnet Scintillation Crystals LED Lighting Ce LUAG Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRLUAG-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Ce:LUAG Chemical Formula: Ce: Lu3Al5O12
Density: 6.73 G/cm3 Hardness: 8.5
Melting: 1970℃ Symmetry: Cubic
Cell Parameters(Å): 11.914 Thermal Conductivity(W/℃cm,25℃): 0.08
Expanding Coefficient(10-6/℃): 8.8 Refractive Index(λ=1.079μm): 1.84
High Light:

Scintillation Ce LUAG Crystal

,

LED Lighting Ce LUAG Crystal

,

Ce LuAG Lutetium Alluminium Garnet



Cerium Doped Lutetium alluminium garnet (Ce:LuAG)Scintillation Crystal For LED Lighting



Ce:LuAG is a well established scintillator and has many attractive properties, such as fast decay (80ns), high light yield, emission peaks at 510nm that well matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability.The Ce:LuAG is also a very appropriate crystal for imaging screens, LED lighting and laser lighting.



Main Properties:

Property Ce:LuAG
Hardness 8.5
Density 6.73 g/cm3
Thermal conductivity(W/℃cm,25℃) 0.08
expanding coefficient(10-6/℃) 8.8
Refractive index(λ=1.079μm) 1.84
Emission peak (nm) 510
Light yield (Photons•Mev-1) 15000
Decay time(ns) 80
Energy resolution <8%



Features:

  • High density
  • High effective atomic number
  • Short decay time
  • Excellent energy resolution
  • Excellent physical and chemical performances
  • Optical isotropy

Applications:

  • High-performance solid laser
  • White light-emitting diodes (WLEDs)
  • High-power laser lighting
  • High resolution X-ray imaging
  • PET scanners

Crystro supply CeLuAG crystal with:

Polishing Specification for Laser Grade
Orientation Tolerence <0.5°
Thickness/Diameter Tolerance ±0.05 mm
Parallel 10''
Perpendicular 5'
Surface Quality 10/5
Clear Aperture >90%
Chamfer <0.2×45°
Maximum dimensions dia 60 mm
