| Name: | Ce:LUAG | Chemical Formula: | Ce: Lu3Al5O12 |
|---|---|---|---|
| Density: | 6.73 G/cm3 | Hardness: | 8.5 |
| Melting: | 1970℃ | Symmetry: | Cubic |
| Cell Parameters(Å): | 11.914 | Thermal Conductivity(W/℃cm,25℃): | 0.08 |
| Expanding Coefficient(10-6/℃): | 8.8 | Refractive Index(λ=1.079μm): | 1.84 |
| High Light: | Ce LuAG Crystal,Ce LuAG Scintillation Crystals,Ce LuAG Particle Detectors Material |
||

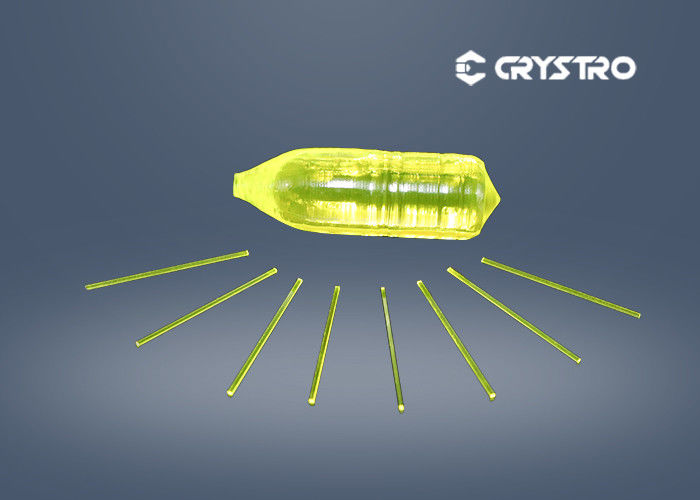

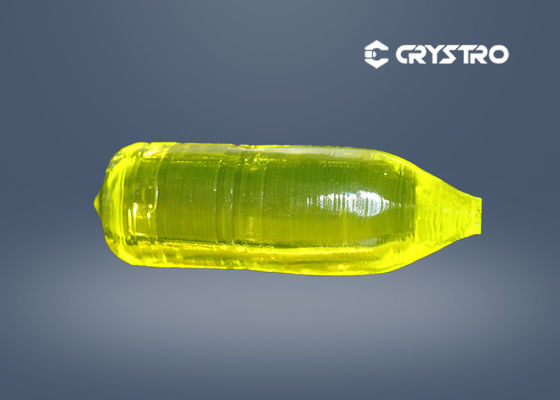

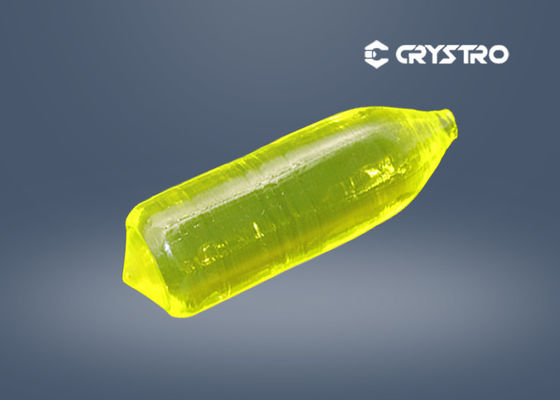

High-Energy Particle Detectors Material Ce Doped Lutetium Alluminium Garnet Ce:LuAG Crystal
Introduction:
Ce:LuAG is a good scintillating material with the primary advantages of high density (6.73g/cm3) and fast decay (80ns), which is suitable for thin imaging screens.
Ce:LuAG single crystals are also widely used as scintillation detectors for γ-rays and high energy particles. Besides, Ce:LuAG has excellent physical and chemical performances and optical isotropy, making it a potential optical host material.
Features:
Applications:
Material Properties :
| Property | Ce:LuAG |
| Melting (℃) | 1970 |
| Cell Parameters(A) | 11.914 |
| Hardness(Mohs) | 8.5 |
| Density(g/cm3) | 6.73 |
| Thermal conductivity(W/℃cm,25℃) | 0.08 |
| expanding coefficient(10-6/℃) | 8.8 |
| Refractive index(λ=1.079μm) | 1.84 |
| Emission peak (nm) | 510 |
| Light yield (Photons•Mev-1) | 15000 |
| Decay time(ns) | 80 |
| Energy resolution | <8% |
Crystro offers :
| Orientation Tolerence | <0.5° |
| Thickness/Diameter Tolerance | ±0.05 mm |
| Parallel | 10'' |
| Perpendicular | 5' |
| Surface Quality | 10/5 |
| Clear Aperture | >90% |
| Chamfer | <0.2×45° |
| Maximum dimensions | dia 60 mm |
