| Name: | Ce:LUAG | Chemical Formula: | Ce: Lu3Al5O12 |
|---|---|---|---|
| Density: | 6.73 G/cm3 | Hardness: | 8.5 |
| Melting: | 1970℃ | Symmetry: | Cubic |
| Cell Parameters(Å): | 11.914 | Thermal Conductivity(W/℃cm,25℃): | 0.08 |
| Expanding Coefficient(10-6/℃): | 8.8 | Refractive Index(λ=1.079μm): | 1.84 |
| High Light: | LUAG Ce Scintillation Crystals,6.73 g/cm3 LUAG Ce Crystals,High Photon Yield LUAG Ce |
||

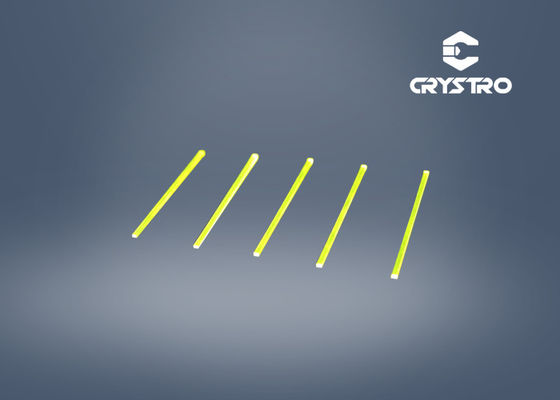

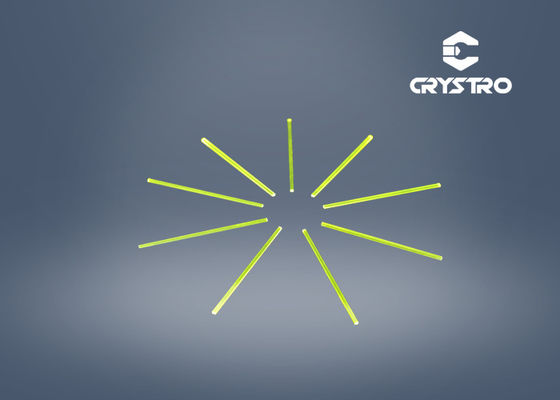

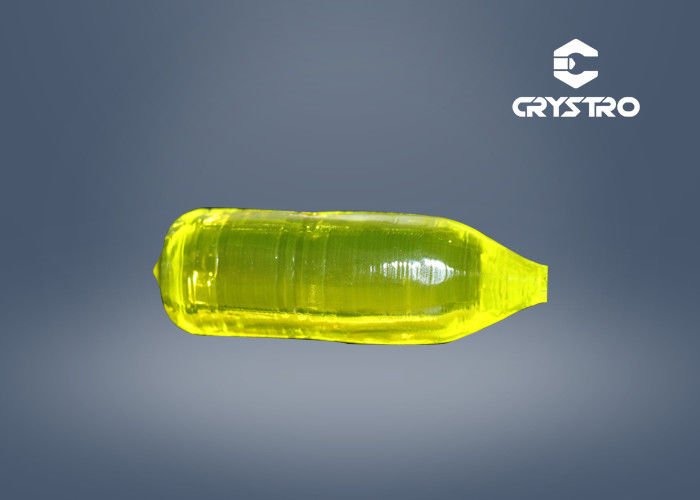

Cerium Doped Lutetium aluminum garnet LUAG(Ce) Scintillation Crystal For Imaging Screens
Ce: LuAG (Cerium Lutetium Aluminum Garnet activated by Cerium ) is a scintillating material used for laser & LED lighting,medical imaging (CT,PET and SPET) , high-energy particle detectors. The basic advantages of this crystal are high density, fast decay (80ns) and emission peaks at 510nm,and good chemical, mechanical, and temperature stability .
| Property | Ce: LuAG |
| Hardness | 8.5 |
| Density | 6.73 g/cm3 |
| Thermal conductivity(W/℃cm,25℃) | 0.08 |
| expanding coefficient(10-6/℃) | 8.8 |
| Refractive index(λ=1.079μm) | 1.84 |
| Emission peak (nm) | 510 |
| Light yield (Photons•Mev-1) | 15000 |
| Decay time(ns) | 80 |
| Energy resolution | <8% |
| Orientation Tolerence | <0.5° |
| Thickness/Diameter Tolerance | ±0.05 mm |
| Parallel | 10'' |
| Perpendicular | 5' |
| Surface Quality | 10/5 |
| Clear Aperture | >90% |
| Chamfer | <0.2×45° |
| Maximum dimensions | dia 60 mm |
