Scintilation Material Cerium Doped Lutetium Aluminium Garnet Ce LUAG Crystal

Scintilation Material Cerium Doped Lutetium Aluminium Garnet Ce LUAG Crystal
Scintilation Material Cerium Doped Lutetium Aluminium Garnet Ce LUAG Crystal Scintilation Material Cerium Doped Lutetium Aluminium Garnet Ce LUAG Crystal Scintilation Material Cerium Doped Lutetium Aluminium Garnet Ce LUAG Crystal

Large Image :  Scintilation Material Cerium Doped Lutetium Aluminium Garnet Ce LUAG Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRLUAG-4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Ce:LUAG Chemical Formula: Ce: Lu3Al5O12
Density: 6.73 G/cm3 Hardness: 8.5
Melting: 1970℃ Symmetry: Cubic
Cell Parameters(Å): 11.914 Thermal Conductivity(W/℃cm,25℃): 0.08
Expanding Coefficient(10-6/℃): 8.8 Refractive Index(λ=1.079μm): 1.84
High Light:

Scintilation Material Ce LUAG Crystal

,

Lutetium Aluminium Garnet Ce LUAG Crystal

,

Cerium Doped Lutetium Aluminium Garnet

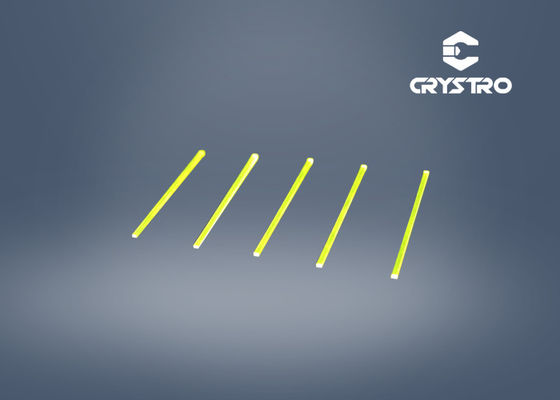

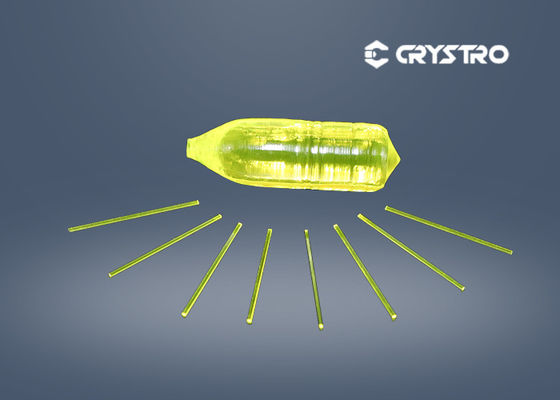

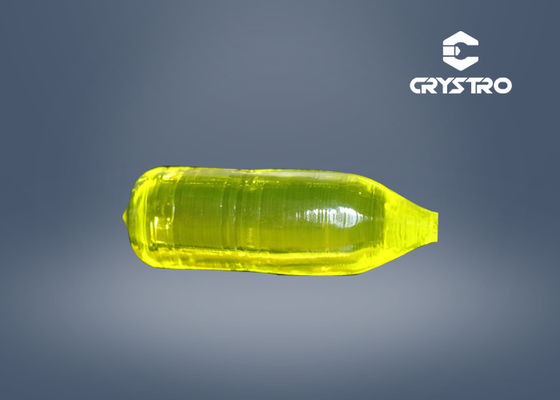

Ce: LuAG (Cerium Doped Lutetium Aluminum Garnet ) Scintillation Crystal Rods



Ce: LuAG is a well-established scintillator and has many attractive properties, such as fast decay (80ns), high light yield, emission peaks at 510nm that well-matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability.The Ce: LuAG is also a very appropriate crystal for imaging screens, LED lighting, and laser lighting.





Main Properties :



Property Ce: LuAG
Hardness 8.5
Density 6.73 g/cm3
Thermal conductivity(W/℃cm,25℃) 0.08
expanding coefficient(10-6/℃) 8.8
Refractive index(λ=1.079μm) 1.84
Emission peak (nm) 510
Light yield (Photons•Mev-1) 15000
Decay time(ns) 80
Energy resolution <8%



Trassmison Curve :

Scintilation Material Cerium Doped Lutetium Aluminium Garnet Ce LUAG Crystal 0



Crystro offers:




Orientation Tolerance <0.5°
Thickness/Diameter Tolerance ±0.05 mm
Parallel 10''
Perpendicular 5'
Surface Quality 10/5
Clear Aperture >90%
Chamfer <0.2×45°
Maximum dimensions dia 60 mm





Product Details :

Scintilation Material Cerium Doped Lutetium Aluminium Garnet Ce LUAG Crystal 1
