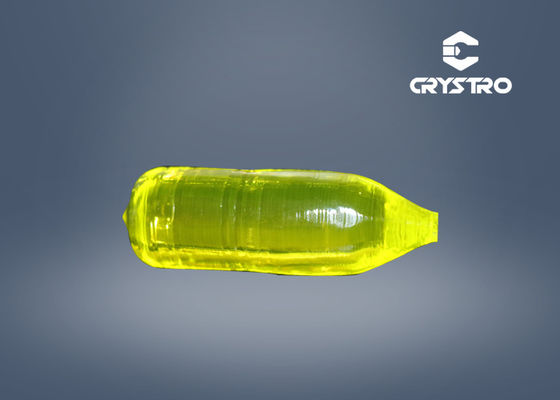

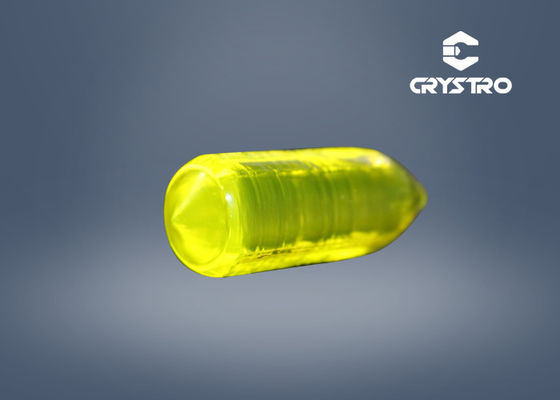

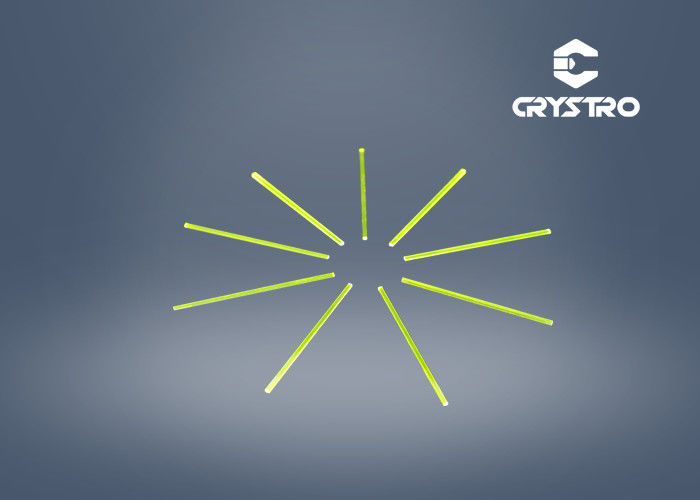

High Density Scintillating Material Lutetium Aluminum Garnet Ce LUAG Crystal

High Density Scintillating Material Lutetium Aluminum Garnet Ce LUAG Crystal
High Density Scintillating Material Lutetium Aluminum Garnet Ce LUAG Crystal High Density Scintillating Material Lutetium Aluminum Garnet Ce LUAG Crystal High Density Scintillating Material Lutetium Aluminum Garnet Ce LUAG Crystal

Large Image :  High Density Scintillating Material Lutetium Aluminum Garnet Ce LUAG Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRLUAG-5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Ce:LUAG Chemical Formula: Ce: Lu3Al5O12
Density: 6.73 G/cm3 Hardness: 8.5
Melting: 1970℃ Symmetry: Cubic
Crystal Cell Parameters(Å): 11.914 Thermal Conductivity(W/℃cm,25℃): 0.08
Expanding Coefficient(10-6/℃): 8.8 Refractive Index(λ=1.079μm): 1.84
High Light:

Ce LuAG Lutetium Aluminum Garnet

,

6.73 g/cm3 Lutetium Aluminum Garnet

,

6.73 g/cm3 Ce LUAG Crystal






Fast Decay Time High-Density Scintillating Material Lutetium Aluminum Garnet (Ce: LuAG)



Ce: LuAG (Lutetium aluminum garnet, Ce: Lu3Al5O12) is an excellent scintillation crystal with the advantages of high density (6.73g/cm3) and fast decay (80ns), which is suitable for thin imaging screens. It also has a high photon yield (15000 Photons/MeV ) and a central emission at 510nm, The material can also be used for Medical Imaging Equipment, like Computed tomography (CT), Positron emission computed tomography (PET), and Single-photon emission computed tomography (SPECT).





Main Properties:



Property Ce: LuAG
Hardness 8.5
Density 6.73 g/cm3
Thermal conductivity(W/℃cm,25℃) 0.08
expanding coefficient(10-6/℃) 8.8
Refractive index(λ=1.079μm) 1.84
Emission peak (nm) 510
Light yield (Photons•Mev-1) 15000
Decay time(ns) 80
Energy resolution <8%



Features:

  • High density
  • Short decay time
  • Excellent energy resolution
  • Excellent physical and chemical performances
  • Optical isotropy



Crystro supply CeLuAG crystal with:


Orientation Tolerence <0.5°
Thickness/Diameter Tolerance ±0.05 mm
Parallel 10''
Perpendicular 5'
Surface Quality 10/5
Clear Aperture >90%
Chamfer <0.2×45°
Maximum dimensions dia 60 mm
