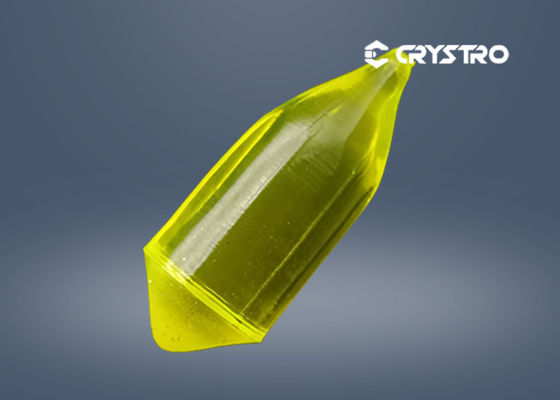

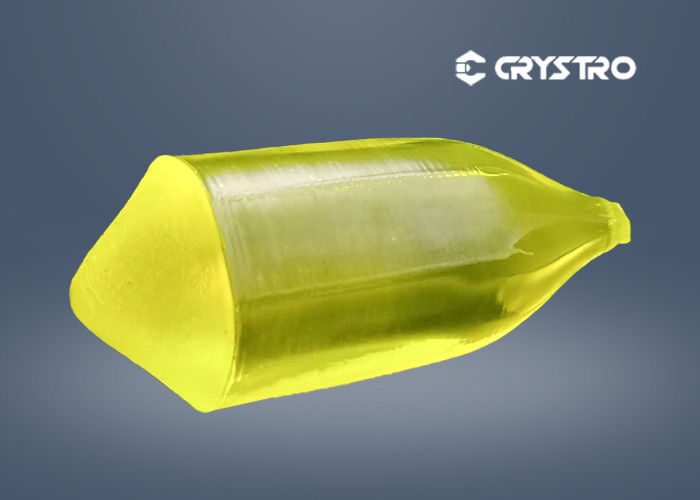

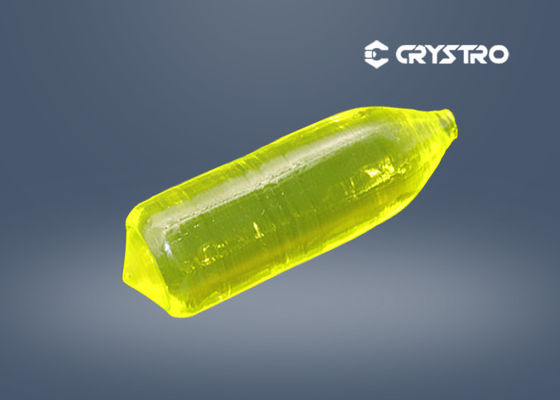

Ce Lu3Al5O12 Medical Imaging Equipment LuAG Ce Scintillation Crystals

Ce Lu3Al5O12 Medical Imaging Equipment LuAG Ce Scintillation Crystals
Ce Lu3Al5O12 Medical Imaging Equipment LuAG Ce Scintillation Crystals Ce Lu3Al5O12 Medical Imaging Equipment LuAG Ce Scintillation Crystals Ce Lu3Al5O12 Medical Imaging Equipment LuAG Ce Scintillation Crystals

Large Image :  Ce Lu3Al5O12 Medical Imaging Equipment LuAG Ce Scintillation Crystals

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRLUAG-7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Cerium Doped Lutetium Aluminum Garnet Chemical Formula: Ce: Lu3Al5O12
Density: 6.73 G/cm3 Hardness: 8.5
Thermal Conductivity(W/℃cm,25℃): 0.08 Light Yield (Photons/MeV): 15000
Melting Point: 1970℃ Decay Time (ns): 80
High Light:

LuAG Ce Scintillation Crystals

,

Medical Equipment Scintillation Crystals

,

6.73 g/cm3 LuAG Ce




Good Chemical Stability LuAG(Ce)  Crystal For Medical Imaging Equipment





Ce: LuAG is a well-established scintillator and has many attractive properties, such as fast decay (80ns), high light yield, emission peaks at 510nm that well-matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability.The Ce: LuAG is also a very appropriate crystal for imaging screens, LED lighting, and laser lighting.





Application:

  • Computed tomography (CT)
  • Positron emission computed tomography (PET)
  • Single-photon emission computed tomography (SPECT)
  •  X-ray imaging screens
  •  Laser & LED lighting



Main Advantages :

  • Good mechanical and chemical performance
  • High density
  • Fast decay time
  • Non--hygroscopicity



Main Properties :



Property Ce: LuAG
Hardness 8.5
Density 6.73 g/cm3
Thermal conductivity(W/℃cm,25℃) 0.08
expanding coefficient(10-6/℃) 8.8
Refractive index(λ=1.079μm) 1.84
Emission peak (nm) 510
Light yield (Photons•Mev-1) 15000
Decay time(ns) 80
Energy resolution <8%



Crystro offers :


Orientation Tolerence <0.5°
Thickness/Diameter Tolerance ±0.05 mm
Parallel 10''
Perpendicular 5'
Surface Quality 10/5
Clear Aperture >90%
Chamfer <0.2×45°
Maximum dimensions Max φ 60 mm




Product detail :



Ce Lu3Al5O12 Medical Imaging Equipment LuAG Ce Scintillation Crystals 0
