| Product Name: | TSAG | Chemical Formula: | Tb3Sc2Al3O12 |
|---|---|---|---|
| Lattice Parameter: | A=12.3Å | Density: | 5.91g/cm3 |
| Melting Point: | 1970℃±10℃ | Growth Method: | Czochralski |
| Crystal Structure: | Cubic, Space Group Ia3d | Verdet(red/M/T)): | 218/152/65 @532nm/633nm/1064nm |
| High Light: | 5.91g/cm3 Faraday Rotator TSAG Crystal,5.91g/cm3 TSAG Optical Crystals,Faraday Rotator Optical Crystals |
||

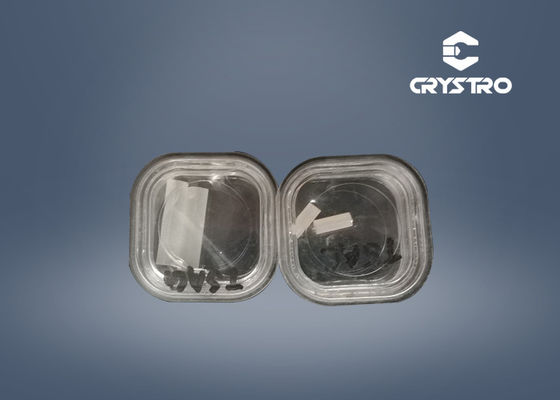

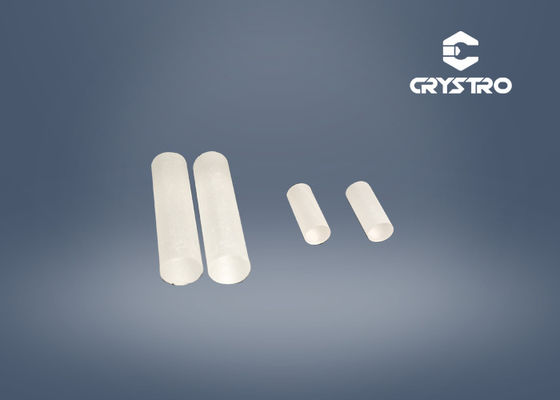

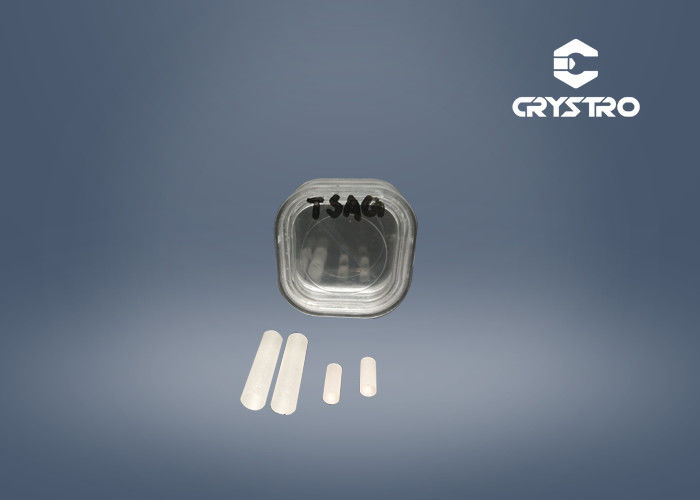

TSAG Crystal (Tb3Sc2Al3O12 ) is an excellent magneto-optical crystal, can be used in the wavelength range of 400-1600 nm. Its verdet constant 20% higher than TGG crystal, and also has good thermal and mechanical properties. So it a key isolator material for the next generation of high-power lasers.
| Property | Value |
|---|---|
| Transmission Range | 400-1600nm |
| Crystal Structure | Cubic, Space group la3d |
| Chemical Formula | Tb3Sc2Al3O12 |
| Lattice Constant | a=12.3Å |
| Growth Method | Czochralski |
| Density | 5.91g/cm3 |
| Melting Point | 1970℃±10℃ |
| Verdet (red/M/T) |
218/152/65@532nm/633nm/1064nm |
• Faraday Rotator;
• Optical Isolator.
TSAG Transmission Curve :
| Property | Value |
|---|---|
| Orientation | ±15′ |
| Wavefront Distortion | ＜λ/8 |
| Extinction Ratio | ＞30dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | ＜0.1mm @ 45° |
| Flatness | ＜λ/10 at 633nm |
| Parallelism | ＜3′ |
| Perpendicularity | ＜5′ |
| Surface Quality | 10/5 |
| AR coating | ＜0.2% @ 1064nm |
