TSAG Terbium Scandium Aluminum Garnet Magneto Optical Crystals

TSAG Terbium Scandium Aluminum Garnet Magneto Optical Crystals

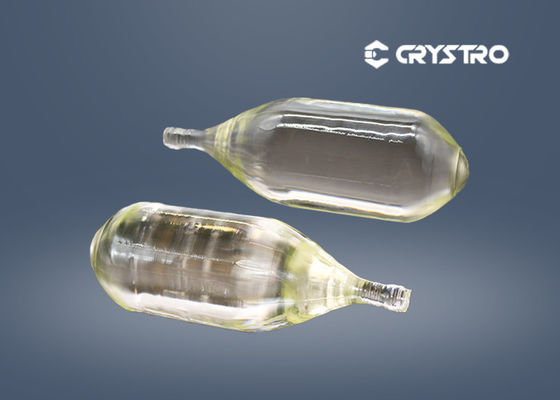

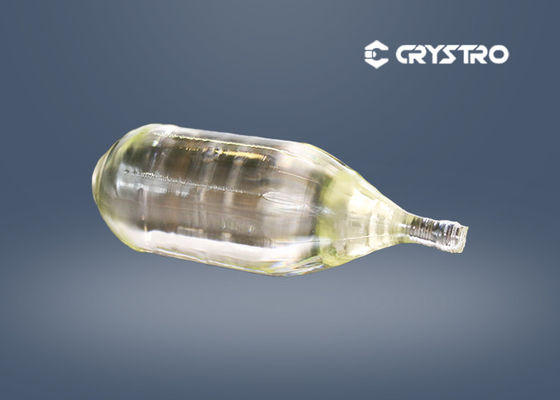

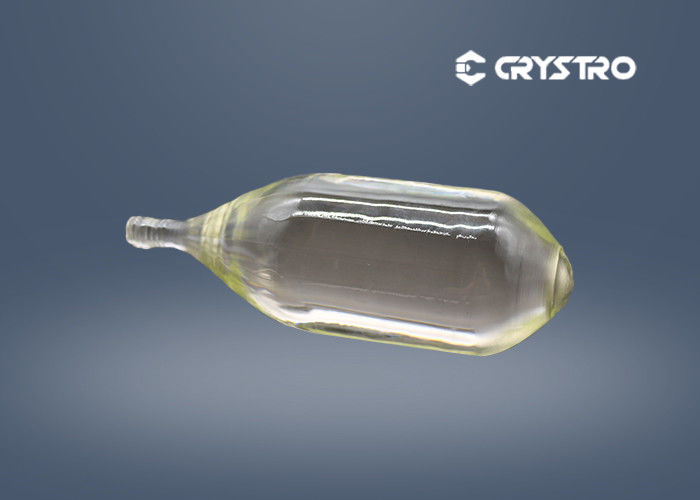

TSAG Terbium Scandium Aluminum Garnet Magneto Optical Crystals TSAG Terbium Scandium Aluminum Garnet Magneto Optical Crystals TSAG Terbium Scandium Aluminum Garnet Magneto Optical Crystals

Large Image :  TSAG Terbium Scandium Aluminum Garnet Magneto Optical Crystals

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRTSAG-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 4 weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Contact Now
Detailed Product Description
Product Name: TSAG Chemical Formula: Tb3Sc2Al3O12
Lattice Parameter: A=12.3Å Density: 5.91g/cm3
Melting Point: 1970℃±10℃ Growth Method: Czochralski
Crystal Structure: Cubic, Space Group Ia3d Verdet(red/M/T)): 218/152/65 @532nm/633nm/1064nm
High Light:

TSAG Optical Crystals

,

TSAG Terbium Scandium Aluminum Garnet

,

5.91g/cm3 Terbium Scandium Aluminum Garnet

High Verdet Constant Optical Crystals TSAG Crystal Terbium Scandium Aluminum Garnet



Terbium Scandium Aluminum Garnet Crystal (TSAG) is an important faraday isolator material for the fiber lasers. It is also an ideal visible and infrared magnetic crystal, It has the advantages of high verdet constant, thermal, and mechanical performance.




Advantages :

  • Verdet constant 20% higher than TGG(48radT-1m-1 at 1064nm)
  • Low Absorption (＜3000ppm/cm at 1064nm)
  • High Power Compliant
  • Low thermally-induced birefringence
  • Make isolator more compact and smaller





Material Properties :



PropertyValue
Transmission Range400-1600nm
Crystal StructureCubic, Space group la3d
Chemical FormulaTb3Sc2Al3O12
Lattice Constanta=12.3Å
Growth MethodCzochralski
Density5.91g/cm3
Melting Point1970℃±10℃
Verdet (red/M/T)

218/152/65@532nm/633nm/1064nm



Crystro offers :

PropertyValue
Orientation±15′
Wavefront Distortion＜λ/8
Extinction Ratio＞30dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer ＜0.1mm @ 45°
Flatness＜λ/10 at 633nm
Parallelism ＜3′
Perpendicularity ＜5′
Surface Quality 10/5
AR coating ＜0.2% @ 1064nm



Product details :

TSAG Terbium Scandium Aluminum Garnet Magneto Optical Crystals 0




Tag:

5.91g/cm3 Terbium Scandium Aluminum Garnet,

Faraday Terbium Scandium Aluminum Garnet,

TSAG Faraday Single Crystals
