| Product Name: | TSAG | Chemical Formula: | Tb3Sc2Al3O12 |
|---|---|---|---|
| Lattice Parameter: | A=12.3Å | Density: | 5.91g/cm3 |
| Melting Point: | 1970℃±10℃ | Growth Method: | Czochralski |
| Crystal Structure: | Cubic, Space Group Ia3d | Verdet(red/M/T)): | 218/152/65 @532nm/633nm/1064nm |
| High Light: | 1600nm TSAG Faraday Single Crystals,5.91g/cm3 Faraday Terbium Scandium Aluminum Garnet,5.91g/cm3 Terbium Scandium Aluminum Garnet |
||

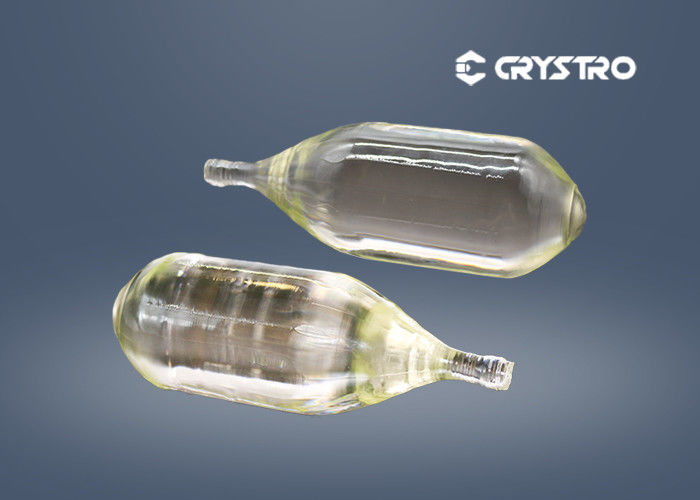

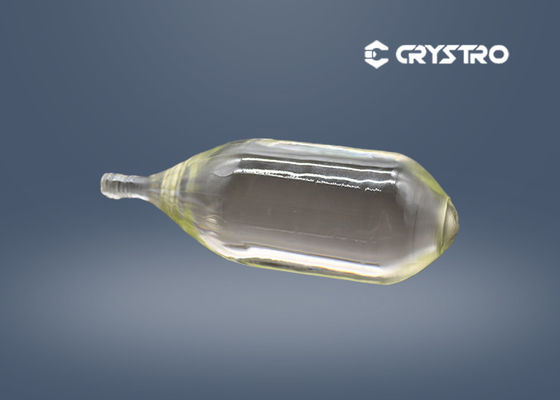

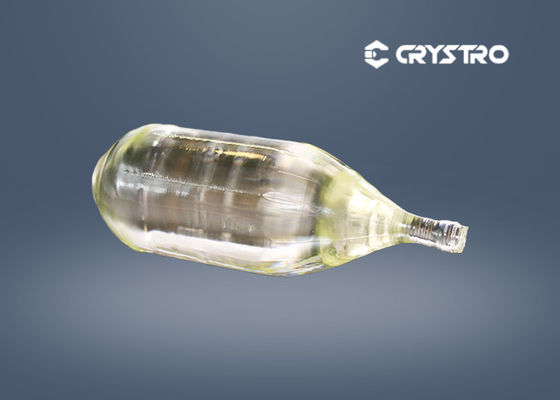

TSAG Faraday crystal is used in the range of 400-1600nm wavelength. Compared with TGG, it has a larger Verdet constant(20% higher than TGG) and lower absorption coefficients (30% lower than TGG).TSAG is an indispensable crystal for next-generation high power lasers.
1.Verdet constant 20% higher than TGG(48radT-1m-1 at 1064nm)
2. Absorption 30% lower than TGG(＜3000ppm/cm at 1064nm)
3. Make your isolator small
| Property | Value |
|---|---|
| Transmission Range | 400-1600nm |
| Crystal Structure | Cubic, Space group la3d |
| Chemical Formula | Tb3Sc2Al3O12 |
| Lattice Constant | a=12.3Å |
| Growth Method | Czochralski |
| Density | 5.91g/cm3 |
| Melting Point | 1970℃±10℃ |
| Verdet (red/M/T) |
218/152/65@532nm/633nm/1064nm |
| Property | Value |
|---|---|
| Orientation | ±15′ |
| Wavefront Distortion | ＜λ/8 |
| Extinction Ratio | ＞30dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | ＜0.1mm @ 45° |
| Flatness | ＜λ/10 at 633nm |
| Parallelism | ＜3′ |
| Perpendicularity | ＜5′ |
| Surface Quality | 10/5 |
| AR coating | ＜0.3% @ 1064nm |
