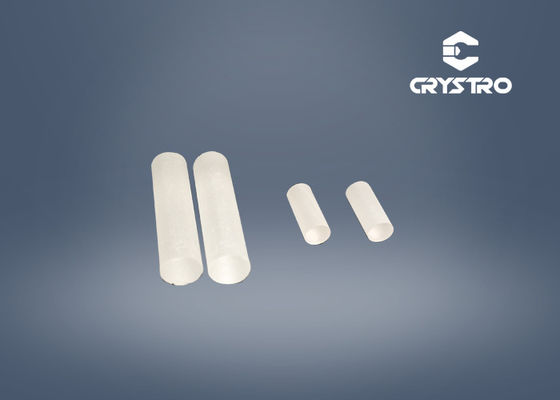

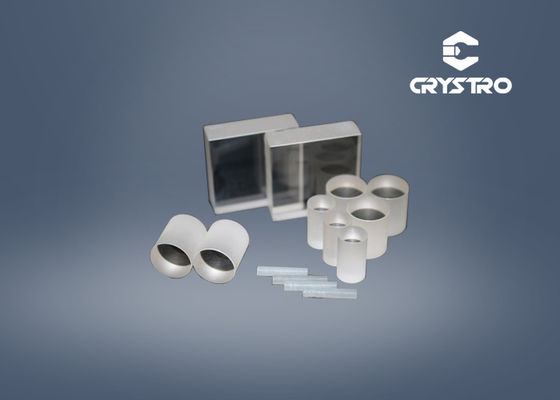

Cubic Structure Tb3Sc2Al3O12 Magneto Optical Crystals TSAG Crystal

Cubic Structure Tb3Sc2Al3O12 Magneto Optical Crystals TSAG Crystal
Cubic Structure Tb3Sc2Al3O12 Magneto Optical Crystals TSAG Crystal Cubic Structure Tb3Sc2Al3O12 Magneto Optical Crystals TSAG Crystal Cubic Structure Tb3Sc2Al3O12 Magneto Optical Crystals TSAG Crystal

Large Image :  Cubic Structure Tb3Sc2Al3O12 Magneto Optical Crystals TSAG Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRTSAG-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: TSAG Chemical Formula: Tb3Sc2Al3O12
Lattice Parameter: A=12.3Å Density: 5.91g/cm3
Melting Point: 1970℃±10℃ Growth Method: Czochralski
Crystal Structure: Cubic Verdet(red/M/T)): 218/152/65 @532nm/633nm/1064nm
Material: Terbium Scandium Aluminum Garnet Transmission Range: 400-1600nm
High Light:

Cubic Structure Tb3Sc2Al3O12 TSAG Crystals

,

TSAG Magneto Optical Crystals

,

TSAG Tb3Sc2Al3O12 Magneto Optical Crystals

Excellent Thermal And Mechanical Properties TSAG Magneto-Optical Crystals



Terbium Scandium Aluminum Garnet Crystal (TSAG) is an important faraday isolator material for the fiber lasers . It is also an ideal visible and infrared magnetic crystal, It has the advantages of high verdet constant, thermal, and mechanical performance.





Properties :



Property Value
Transmission Range 400-1600nm
Crystal Structure Cubic, Space group la3d
Chemical Formula Tb3Sc2Al3O12
Lattice Constant a=12.3Å
Growth Method Czochralski
Density 5.91g/cm3
Melting Point 1970℃±10℃
Verdet (red/M/T)

218/152/65@532nm/633nm/1064nm





Key Features:



  • Verdet constant 20% higher than TGG(48radT-1m-1 at 1064nm)
  • Low Absorption (<3000ppm/cm at 1064nm)
  • High Power Compliant
  • Low thermally-induced birefringence
  • Make isolator more compact and smaller



TSAG Transmission Curve :

Cubic Structure Tb3Sc2Al3O12 Magneto Optical Crystals TSAG Crystal 0





Crystro offers :

Property Value
Orientation ±15′
Wavefront Distortion <λ/8
Extinction Ratio >30dB
Diameter Tolerance  +0.00mm/-0.05mm
Length Tolerance  +0.2mm/-0.2mm
Chamfer  <0.1mm @ 45°
Flatness <λ/10 at 633nm
Parallelism  <3′
Perpendicularity  <5′
Surface Quality  10/5
AR coating  <0.2% @ 1064nm

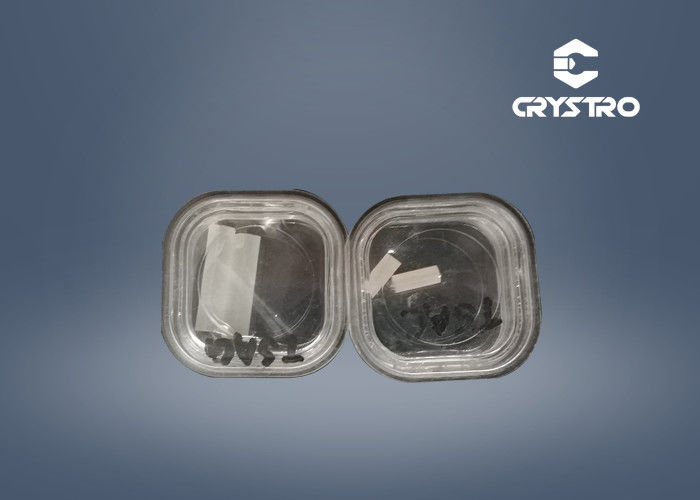

Product details :

Cubic Structure Tb3Sc2Al3O12 Magneto Optical Crystals TSAG Crystal 1
