Product Name: | Lanthanum Gallium Silicate (LGS) | Chemical Formula: | La3Ga5SiO14 |
---|---|---|---|
Growth Method: | Czochralski | Hardness: | 6.6 Moh's |
Density: | 5.754 G/cm3 | Melt Point: | 1470℃ |
Thermal-expansion Coefficient: | α 11=5.10 α 33=3.61 | Acoustic Velocity, SAW: | 2400 ( M/sec ) |
Frequency Constant, BAW: | 1380 ( KHz/mm ) | Temperature Frequency Coefficient: | 1.6х10-5 |
High Light: | LGS Crystal Material,La3Ga5SiO14 LGS Piezoelectric Crystal,5.754 g/cm3 LGS Crystal |

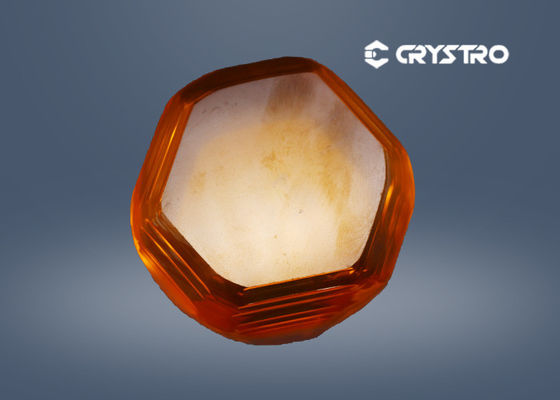

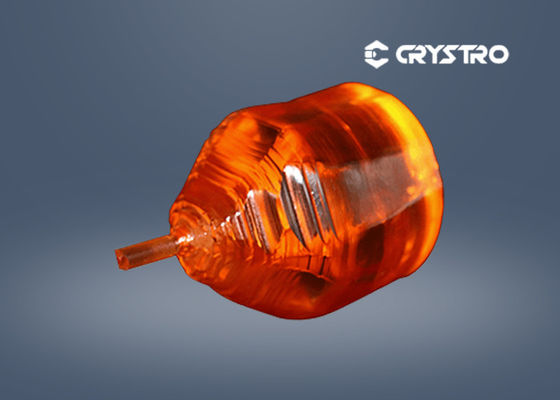

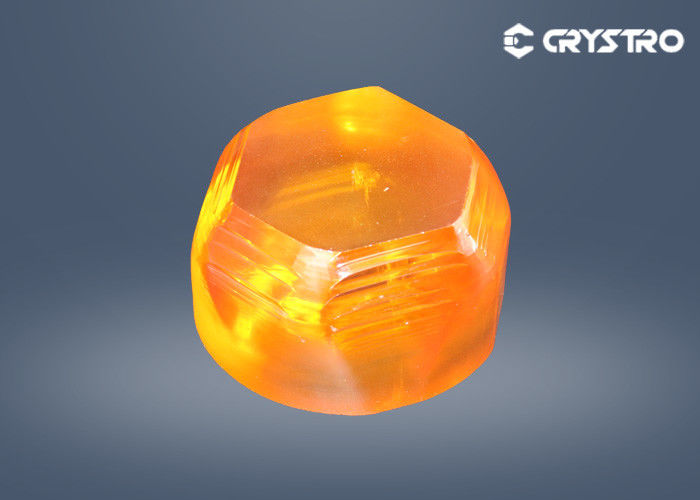

LGS (Langasite La3Ga5SiO14)belonging to the space group P321, point group 32, is a new piezoelectric material,
The main applications of langasite crystals now are SAW device BAW device and electro-optic Q-switch.
Crystal Structure | rigonal system, group 33 a= 8.1783 c = 5.1014 |
Growth Method | Czochralski |
Hardness | 6.6 Moh's |
Density | 5.754 g/cm3 |
Melt Point | 1470 o C ( phase transition point: N/A) |
Thermal expansion (x10-6/ oC) | α 11: 5.10 α 33: 3.61 |
Acoustic velocity, SAW | 2400 ( m/sec ) |
Frequency constant, BAW | 1380 ( kHz/mm ) |
Piezoelectric coupling | K2 (%) BAW: 2.21 SAW: 0.3 |
Dielectric Constant | ε11/ε0=18.27 ε33/ε0=56.26 |
Piezoelectric Strain Constant | d11=6.3 d14=5.4 |
Inclusions | N0 |
