Product Details:
Payment & Shipping Terms:
|
| Name: | Lanthanum Gallium Silicate (LGS) | Chemical Formula: | La3Ga5SiO14 |
|---|---|---|---|
| Growth Method: | Czochralski | Hardness: | 6.6 Moh's |
| Density: | 5.754 G/cm3 | Melt Point: | 1470℃ |
| Thermal-expansion Coefficient: | α 11=5.10 α 33=3.61 | Acoustic Velocity, SAW: | 2400 ( M/sec ) |
| Frequency Constant, BAW: | 1380 ( KHz/mm ) | Temperature Frequency Coefficient: | 1.6х10-5 |
| High Light: | La3Ga5SiO14 LGS Piezoelectric Crystal,LGS Piezoelectric Effect Crystals,5.754 g/cm3 Lanthanum Gallium Silicate |
||

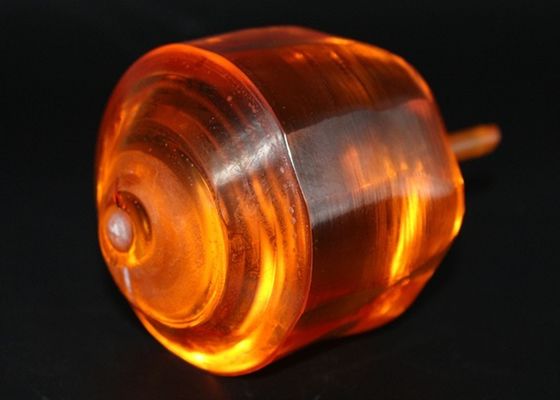

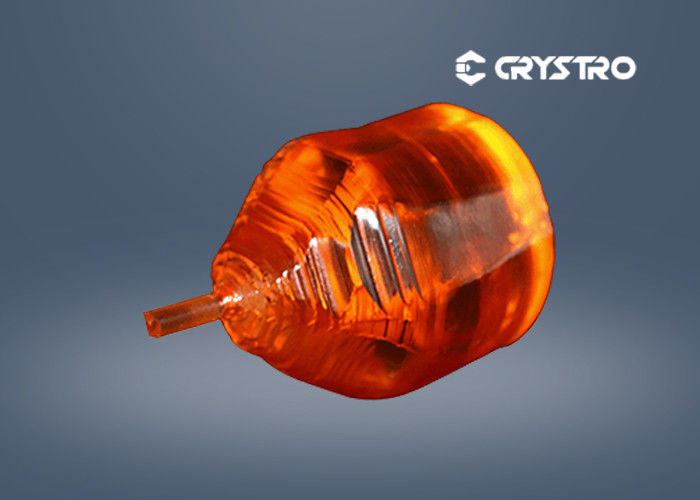

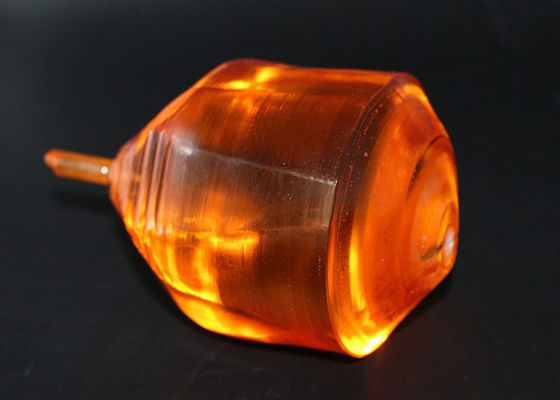

Langasite - Lanthanum Gallium Silicate, is a piezoelectric crystal of gallogermanate family . Though langasite was initially developed as a laser crystal, it revealed a remarkable combination of piezoelectric qualities, which opened up new opportunities to use the LGS crystal in radio frequency devices. The main applications of langasite crystals now is SAW filters and SAW resonators.
Main Properties:
| Crystal Structure | rigonal system, group 33 a= 8.1783 c = 5.1014 |
| Growth Method | Czochralski |
| Hardness | 6.6 Moh's |
| Density | 5.754 g/cm3 |
| Melt Point | 1470 o C ( phase transition point: N/A) |
| Thermal expansion (x10-6/ oC) | α 11: 5.10 α 33: 3.61 |
| Acoustic velocity, SAW | 2400 ( m/sec ) |
| Frequency constant, BAW | 1380 ( kHz/mm ) |
| Piezoelectric coupling | K2 (%) BAW: 2.21 SAW: 0.3 |
| Inclusions | N0 |
High damage threshold
Good optical rotation
Can withstand high and low temperature changes
Stable physical and chemical properties
High electromechanical coupling coefficient (3 times of quartz)
Low equivalent series resistance
Main Appliaction :
electro-optic Q-switch
SAW device
BAW device
Sensor
High power high repetition rate all solid state laser
High and low temperature change laser
