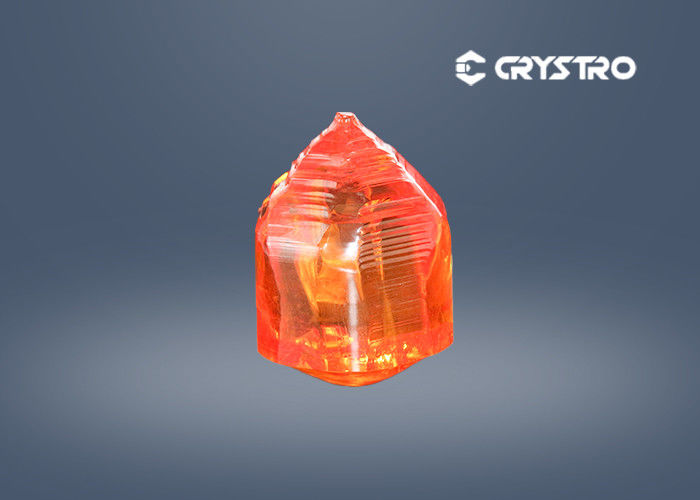

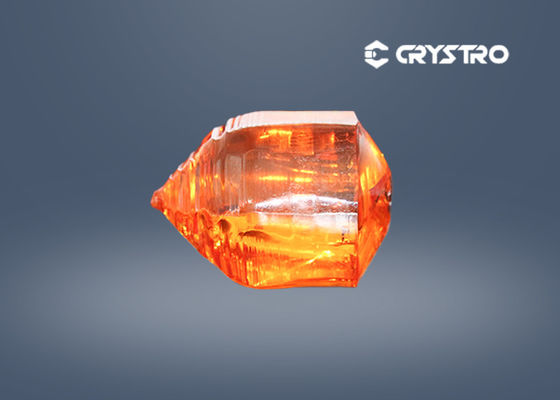

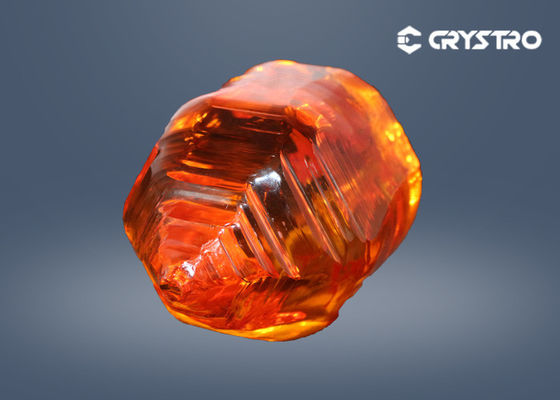

Electro Optical Q Switch La3Ga5SiO14 LGS Piezoelectric Effect Crystals

Electro Optical Q Switch La3Ga5SiO14 LGS Piezoelectric Effect Crystals
Electro Optical Q Switch La3Ga5SiO14 LGS Piezoelectric Effect Crystals Electro Optical Q Switch La3Ga5SiO14 LGS Piezoelectric Effect Crystals Electro Optical Q Switch La3Ga5SiO14 LGS Piezoelectric Effect Crystals

Large Image :  Electro Optical Q Switch La3Ga5SiO14 LGS Piezoelectric Effect Crystals

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRLGS-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Lanthanum Gallium Silicate (LGS) Chemical Formula: La3Ga5SiO14
Growth Method: Czochralski Hardness: 6.6 Moh's
Density: 5.754 G/cm3 Melt Point: 1470℃
Thermal-expansion Coefficient: α 11=5.10 α 33=3.61 Acoustic Velocity, SAW: 2400 ( M/sec )
Frequency Constant, BAW: 1380 ( KHz/mm ) Temperature Frequency Coefficient: 1.6х10-5
High Light:

Piezoelectric Effect LGS Crystals

,

Q Switch Piezoelectric Effect Crystals

,

LGS La3Ga5SiO14 Piezoelectric Effect Crystals

Good Optical Rotation Piezoelectric Effect LGS Crystals Electro-Optical Q-Switch Crystals

Introduction :

Langasite - Lanthanum Gallium Silicate, is a piezoelectric crystal of gallogermanate family .it is new and excellent piezoelectric crystal for BAW and SAW devices due to its excellent spectroscopic and acoustic characteristics.LGS also can be used as an electro-optic crystal .The electro-optic Q-switch made by LGS is actually a new kind of rotation-electro-optical Q-switch. Because of the effect of optical rotation, it can be used as a practical switch and a good Q-modulation result can be obtained.



Main Advantages :

  • Electromechanical coupling coefficient is (3-4 times of quartz)
  • High thermal stability
  • Low equivalent series resistance ratio



Material Properties :



Crystal Structure rigonal system, group 33 a= 8.1783 c = 5.1014
Growth Method Czochralski
Hardness 6.6 Moh's
Density 5.754 g/cm3
Melt Point 1470 o C ( phase transition point: N/A)
Thermal expansion (x10-6/ oC) α 11: 5.10 α 33: 3.61
Acoustic velocity, SAW 2400 ( m/sec )
Frequency constant, BAW 1380 ( kHz/mm )
Piezoelectric coupling K2 (%) BAW: 2.21 SAW: 0.3
Dielectric Constant ε11/ε0=18.27   ε33/ε0=56.26
Piezoelectric Strain Constant d11=6.3 d14=5.4
Inclusions N0
