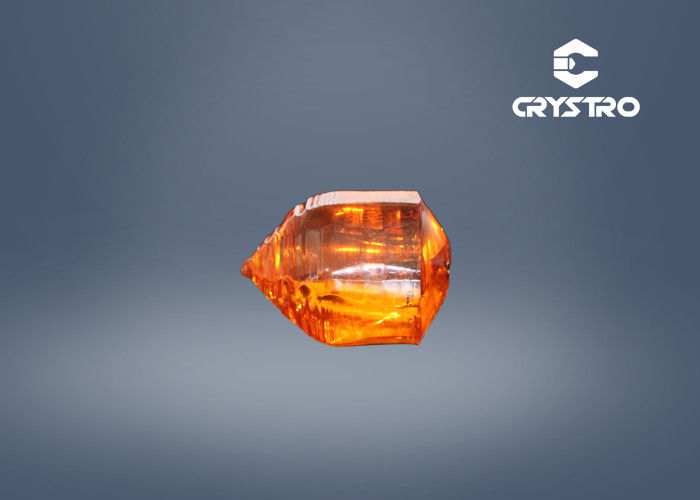

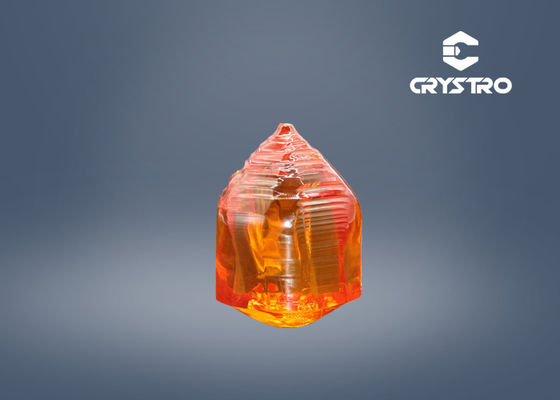

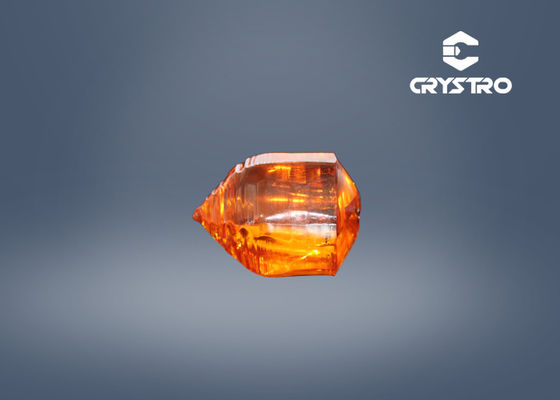

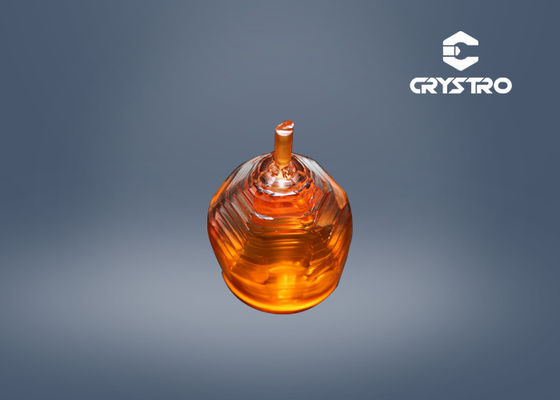

Electro Optical Q Switch Material Lanthanum Gallium Silicate LGS Crystal

Electro Optical Q Switch Material Lanthanum Gallium Silicate LGS Crystal
Electro Optical Q Switch Material Lanthanum Gallium Silicate LGS Crystal Electro Optical Q Switch Material Lanthanum Gallium Silicate LGS Crystal Electro Optical Q Switch Material Lanthanum Gallium Silicate LGS Crystal

Large Image :  Electro Optical Q Switch Material Lanthanum Gallium Silicate LGS Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRLGS-5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Lanthanum Gallium Silicate (LGS) Chemical Formula: La3Ga5SiO14
Growth Method: Czochralski Hardness: 6.6 Moh's
Density: 5.754 G/cm3 Melt Point: 1470℃
Thermal-expansion Coefficient: α 11=5.10 α 33=3.61 Acoustic Velocity, SAW: 2400 ( M/sec )
Frequency Constant, BAW: 1380 ( KHz/mm ) Temperature Frequency Coefficient: 1.6х10-5
High Light:

Electro Optical Q Switch Material

,

5.754 g/cm3 Q Switch LGS Crystal

,

5.754 g/cm3 LGS Lanthanum Gallium Silicate

Electro-Optical Q-Switch Material LGS Crystals ( Lanthanum gallium silicate )

Introduction :



Langasite crystal (La3Ga5SiO14, LGS) is a multifunctional intraocular crystal, belonging to the space group P321, point group 32, has been reported to be promising new piezoelectric materials for fabrication of surface acoustic wave (SAW) and bulk acoustic wave (BAW) devices. The devices made of langasite crystal could be used at high temperatures up to 900℃ because of its high thermal stability.



Material Properties :



Crystal Structure regional system, group 33 a= 8.1783 c = 5.1014
Growth Method Czochralski
Hardness 6.6 Moh's
Density 5.754 g/cm3
Melt Point 1470 o C ( phase transition point: N/A)
Thermal expansion (x10-6/ oC) α 11: 5.10 α 33: 3.61
Acoustic velocity, SAW 2400 ( m/sec )
Frequency constant, BAW 1380 ( kHz/mm )
Piezoelectric coupling K2 (%) BAW: 2.21 SAW: 0.3
Dielectric Constant ε11/ε0=18.27   ε33/ε0=56.26
Piezoelectric Strain Constant d11=6.3 d14=5.4
Inclusions N0





LGS Transmission Curve :

Electro Optical Q Switch Material Lanthanum Gallium Silicate LGS Crystal 0



Main Advantages :

  • The electromechanical coupling coefficient is (3-4 times of quartz)
  • High thermal stability
  • The low equivalent series resistance ratio



Product Details :

Electro Optical Q Switch Material Lanthanum Gallium Silicate LGS Crystal 1
