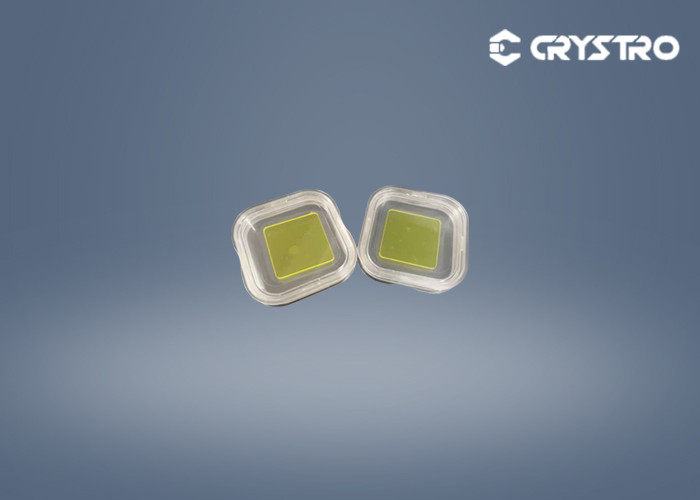

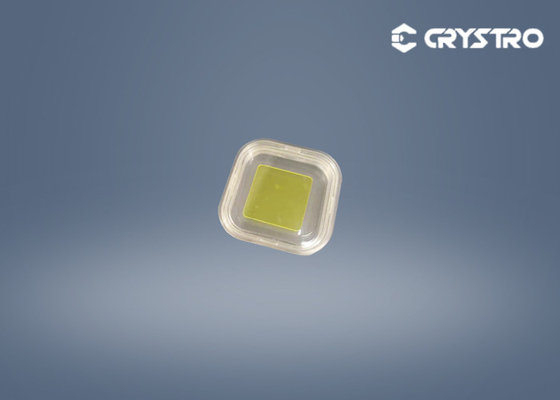

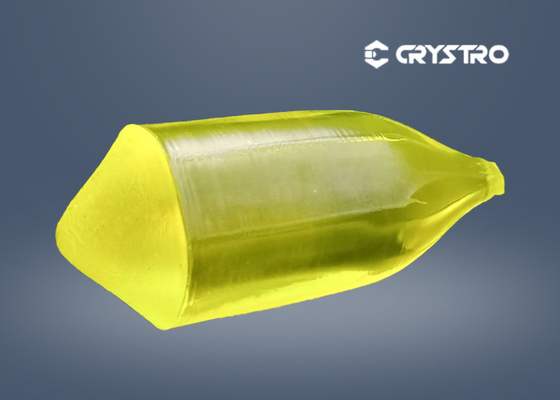

Gd3Al2Ga3O12 GAGG Crystal Scintillator Material For Gamma-Ray Spectrometry

Gd3Al2Ga3O12 GAGG Crystal Scintillator Material For Gamma-Ray Spectrometry
Gd3Al2Ga3O12 GAGG Crystal Scintillator Material For Gamma-Ray Spectrometry Gd3Al2Ga3O12 GAGG Crystal Scintillator Material For Gamma-Ray Spectrometry Gd3Al2Ga3O12 GAGG Crystal Scintillator Material For Gamma-Ray Spectrometry

Large Image :  Gd3Al2Ga3O12 GAGG Crystal Scintillator Material For Gamma-Ray Spectrometry

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: 1Ce:GAGG27*27*2-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: GAGG(Ce) Chemical Formula: Ce:Gd3Al2Ga3O12
Size: 27*27*2mm Growth Method: Czochralski
Mohs Hardness: 8.0 Density: 6.63g/cm3
Melting Point: 1850℃ Dimensions: MaxΦ60mm
Structure: Cubic,Ia3d
High Light:

Gamma Ray Spectrometry GAGG Crystal

,

Scintillator Material GAGG Crystal

,

LED lighting GAGG Crystal

Gd3Al2Ga3O12 GAGG(Ce) Crystal Scintillator Material For Gamma-Ray Spectrometry

Scintillation Crystal Material GAGG(Ce) Crystal For Laser & LED lighting

Introduction :

Cerium-doped Gadolinium Aluminium Gallium Garnet (Ce: GAGG) is a relatively new single-crystal scintillator with several properties. These include high light yield; an emission peak well-matched to silicon sensors; and a low intrinsic energy resolution. Moreover, the material has a high
density and is non-hygroscopic.

It is a new scintillator for single-photon emission computed tomography(SPECT), gamma-ray, and Compton electron detection. Cerium doped GAGG has many properties that make it suitable for gamma spectroscopy and medical imaging applications. A high photon yield and emission peak around 540 nm make the material well suited to be read out by Silicon Photo-multiplier detectors.



Transmission Curve :

Gd3Al2Ga3O12 GAGG Crystal Scintillator Material For Gamma-Ray Spectrometry 0











Material Properties :



Property Value
Chemical Formula Ce:Gd3Al2Ga3O12
Atomic Number (Effective) 54.4
Growth Method Czochralski
Density 6.63g/cm3
Mohs Hardness 8
Melting Point 1850℃
Thermal Expansion Coeff. TBA x 10‾⁶







Main Application:

  • Medical Imaging - PET, PEM, SPECT, and CT
  • Specialist applications in high energy, nuclear, space, and medical physics
  • Scanning electron microscopy (SEM)







Crystro offers:



Orientation Tolerance <0.5°
Thickness/Diameter Tolerance ±0.05mm
Parallel 10‘’
Perpendicular 5'
Surface Quality 10/5
Clear Aperture >90%
Chamfer <0.2*45°
Max Dimensions MaxΦ 60mm























Product Detail :

Gd3Al2Ga3O12 GAGG Crystal Scintillator Material For Gamma-Ray Spectrometry 1
