| Chemical Formula: | Ce:Gd3Al2Ga3O12 | Growth Method: | Czochralski |
|---|---|---|---|

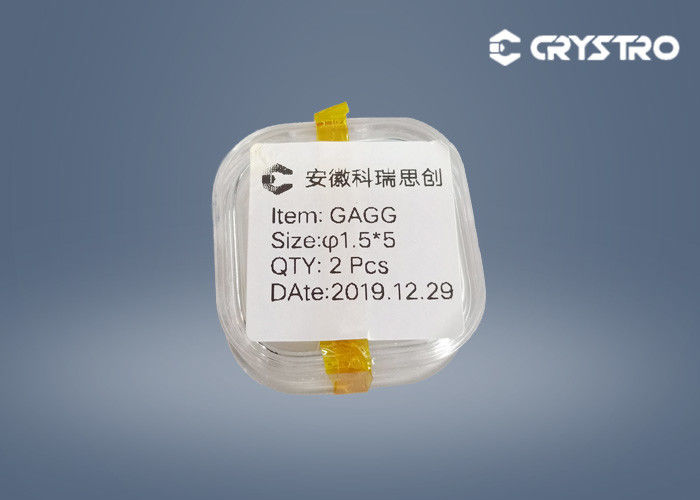

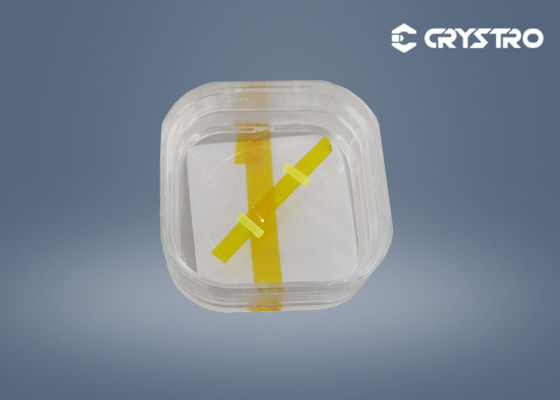

| Atomic Number: | 54.4 | Size: | φ1.5*5mm |
| Density: | 6.63g/cm3 | Melting Point: | 1850℃ |
| Mohs Hardness: | 8.0 | Hygroscopic: | No |
| Highlight: | Cerium Doped GAGG Rods,5mm GAGG Rods,Cerium Doped cagg crystal |
||
Introduction :
The cerium doped multicomponent Gadolinium Aluminum Gallium Garnet crystals referred to as Ce: GAGG with the chemical formula of Ce: Gd3Al2Ga3O12. It is one of the brightest available scintillators with an emission peak at 520nm. GAGG(Ce) has good stopping power, is physically rugged, and well suited to a broad range of applications:
Main Advantages:
Main Properties:
| Property | Value |
|---|---|
| Chemical Formula | Ce:Gd3Al2Ga3O12 |
| Atomic Number (Effective) | 54.4 |
| Growth Method | Czochralski |
| Density | 6.63g/cm3 |
| Mohs Hardness | 8 |
| Melting Point | 1850℃ |
| Thermal Expansion Coeff. | TBA x 10‾⁶ |
Crystro offers:
| Orientation Tolerance | ＜0.5° |
| Thickness/Diameter Tolerance | ±0.05mm |
| Parallel | 30" |
| Perpendicular | 15' |
| Surface Quality | 10/5 |
| Clear Aperture | ＞90% |
| Chamfer | ＜0.1*45° |
| Max Dimensions | MaxΦ 60mm |
