10*10*0.5mm Ce Doped Singel Crystals High Density GAGG Scintillators

10*10*0.5mm Ce Doped  Singel Crystals High Density GAGG Scintillators
10*10*0.5mm Ce Doped  Singel Crystals High Density GAGG Scintillators 10*10*0.5mm Ce Doped  Singel Crystals High Density GAGG Scintillators

Large Image :  10*10*0.5mm Ce Doped Singel Crystals High Density GAGG Scintillators

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: 1Ce:GAGG10*10*0.5-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Ce Doped GAGG Chemical Formula: Ce:Gd3Al2Ga3O12
Growth Method: Czochralski Density: 6.63g/cm3
Atomic Number: 54.4 Mohs Hardness: 8.0
Melting Point: 1850℃ Hygroscopic: No
High Light:

inorganic GAGG Scintillators

,

Ce Doped GAGG Scintillators

,

High Density crystal scintillators

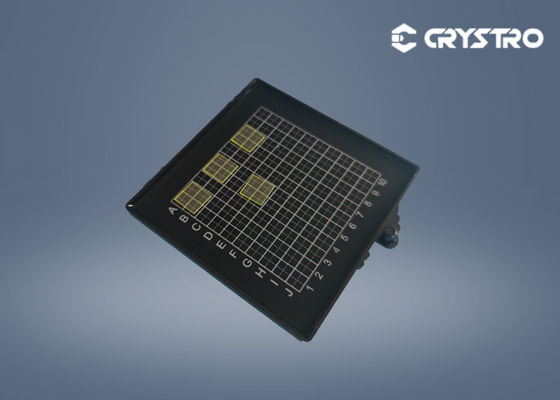

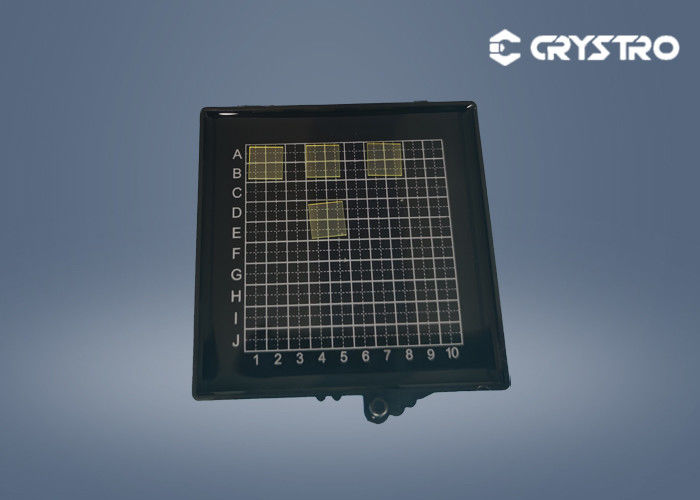

10*10*0.5mm Ce GAGG Crystals high-density Single Crystal Scintillators



Introduction :



The Gd3Al2Ga3O12 (Ce: GAGG) is a new inorganic scintillator known for its attractive properties such as high light yield, high density, and relatively fast decay time. The Gd3Al2Ga3O12 (Ce: GAGG) is a new inorganic scintillator known for its attractive properties such as high light yield, high density, and relatively fast decay time.

GAGG crystal commonly used for the detection of high-energy photons and particles. It could be a new scintillator material for such applications as X-ray computed tomography (CT), positron emission tomography (PET), and other medical imaging techniques, as well as in high energy and nuclear physics.



Material Properties:



Property Value
Chemical Formula Ce:Gd3Al2Ga3O12
Atomic Number (Effective) 54.4
Growth Method Czochralski
Density 6.63g/cm3
Mohs Hardness 8
Melting Point 1850℃
Thermal Expansion Coeff. TBA x 10‾⁶





Crystro offers:



Orientation Tolerance <0.5°
Thickness/Diameter Tolerance ±0.05mm
Parallel 30"
Perpendicular 15'
Surface Quality 60/40
Clear Aperture >90%
Chamfer <0.1*45°
Max Dimensions MaxΦ 60mm























Main Advantages:

  • High output
  • High energy resolution
  • High density
  • No self-radiation
  • No moisture release



Main Application:

  • Medical Imaging - PET, PEM, SPECT, and CT
  • Specialist applications in high energy, nuclear, space, and medical physics
  • Scanning electron microscopy (SEM)













10*10*0.5mm Ce Doped  Singel Crystals High Density GAGG Scintillators 0
