Product Details:
Payment & Shipping Terms:
|

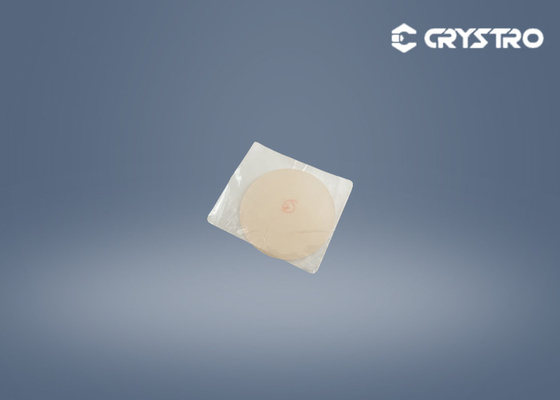

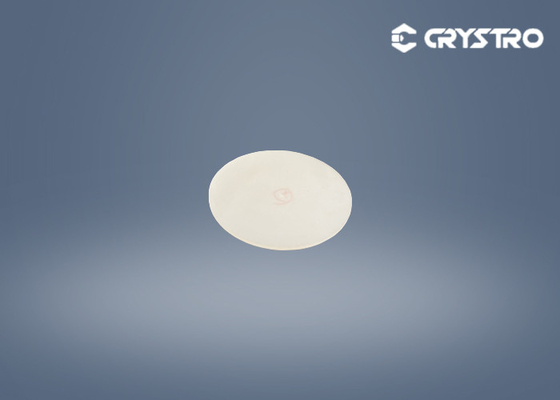

| Product Name: | LGS Wafer | Chemical Formula: | La3Ga5SiO14 |
|---|---|---|---|
| Size: | D50.8*0.5mm | Orientation: | （0，138.5，26.7） |
| Polish: | Single Side | Growth Method: | Czochralski |
| Hardness: | 6.6 Moh's | Density: | 5.754 G/cm3 |
| Melt Point: | 1470℃ | ||
| High Light: | Customized LGS Wafers,Piezoelectric LGS Wafers,Customized Langasite Wafers |
||
LGS (Langasite La3Ga5SiO14)belonging to the space group P321, point group 32, is a new piezoelectric material,
The main applications of langasite crystals now are SAW device BAW device and electro-optic Q-switch.
The surface acoustic device is prepared with piezoelectric crystal as the substrate is easy to realize the miniaturization of the device due to its excellent electrical properties, and is widely used in communications, radar, navigation, and so on. In recent years, lanthanum gallium silicate structure crystals have been widely used in surface acoustic waves, bulk surface wave filters, and sensors.
| Crystal Structure | rigonal system, group 33 a= 8.1783 c = 5.1014 |
| Growth Method | Czochralski |
| Hardness | 6.6 Moh's |
| Density | 5.754 g/cm3 |
| Melt Point | 1470 o C ( phase transition point: N/A) |
| Thermal expansion (x10-6/ oC) | α 11: 5.10 α 33: 3.61 |
| Acoustic velocity, SAW | 2400 ( m/sec ) |
| Frequency constant, BAW | 1380 ( kHz/mm ) |
| Piezoelectric coupling | K2 (%) BAW: 2.21 SAW: 0.3 |
| Dielectric Constant | ε11/ε0=18.27 ε33/ε0=56.26 |
| Piezoelectric Strain Constant | d11=6.3 d14=5.4 |
| Inclusions | N0 |
