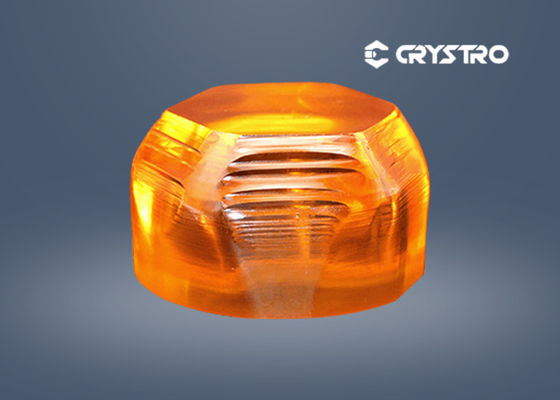

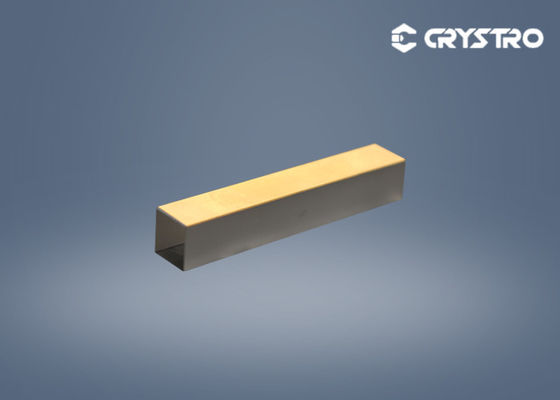

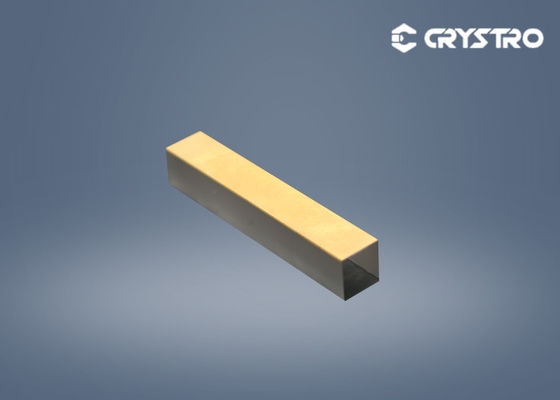

Electro Optical Langasite LGS Lanthanum Gallium Silicate Crystal

Electro Optical Langasite LGS Lanthanum Gallium Silicate  Crystal
Electro Optical Langasite LGS Lanthanum Gallium Silicate  Crystal Electro Optical Langasite LGS Lanthanum Gallium Silicate  Crystal Electro Optical Langasite LGS Lanthanum Gallium Silicate  Crystal

Large Image :  Electro Optical Langasite LGS Lanthanum Gallium Silicate Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: CRLGS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Lanthanum Gallium Silicate (LGS) Chemical Formula: La3Ga5SiO14
Growth Method: Czochralski Hardness: 6.6 Moh's
Density: 5.754 G/cm3 Melt Point: 1470℃
Thermal-expansion Coefficient: α 11=5.10 α 33=3.61 Acoustic Velocity, SAW: 2400 ( M/sec )
Frequency Constant, BAW: 1380 ( KHz/mm ) Temperature Frequency Coefficient: 1.6х10-5
High Light:

Electro Optical langasite

,

LGS Lanthanum Gallium Silicate

,

lanthanum gallium silicate crystal




Good Electro-Optical Properties Langasite LGS (La3Ga5SiO14) Crystal



Introduction :

Lanthanum gallium silicate crystal has excellent physical and chemical properties and has optical and electro-optical properties. It is a new type of optical-electro-optical Q-switch material. Lanthanum gallium silicate (LGS) has good electro-optical properties, the half-wave voltage can be adjusted with the aspect ratio, its optical damage threshold is high, the optical rotation is small, moderate hardness and good mechanical properties and chemical stability are excellent Electro-optic crystal.



Main Properties:



Crystal Structure regional system, group 33 a= 8.1783 c = 5.1014
Growth Method Czochralski
Hardness 6.6 Moh's
Density 5.754 g/cm3
Melt Point 1470 o C ( phase transition point: N/A)
Thermal expansion (x10-6/ oC) α 11: 5.10 α 33: 3.61
Acoustic velocity, SAW 2400 ( m/sec )
Frequency constant, BAW 1380 ( kHz/mm )
Piezoelectric coupling K2 (%) BAW: 2.21 SAW: 0.3
Inclusions N0



LGS Transmission Curve :

Electro Optical Langasite LGS Lanthanum Gallium Silicate  Crystal 0







Main Application  :



  • electro-optic Q-switch

  • SAW device

  • BAW device

  • Sensor

  • High power high repetition rate all-solid-state laser

  • High and low temperature change the laser

Product Details :

Electro Optical Langasite LGS Lanthanum Gallium Silicate  Crystal 1
