Saw Device High Damage Threshold Piezoelectric Effect LGS Crystal

Name: Saw Device High Damage Threshold Piezoelectric Effect LGS Crystal
Brand: Crystro
SKU: CRLGS-4
Rating: 4.6 (189 reviews)

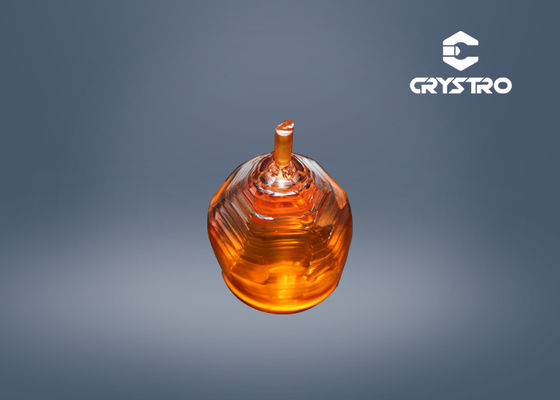

Large Image : Saw Device High Damage Threshold Piezoelectric Effect LGS Crystal

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRLGS-4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Name:	Lanthanum Gallium Silicate (LGS)	Chemical Formula:	La3Ga5SiO14
Growth Method:	Czochralski	Hardness:	6.6 Moh's
Density:	5.754 G/cm3	Melt Point:	1470℃
Thermal-expansion Coefficient:	α 11=5.10 α 33=3.61	Acoustic Velocity, SAW:	2400 ( M/sec )
Frequency Constant, BAW:	1380 ( KHz/mm )	Temperature Frequency Coefficient:	1.6х10-5
High Light:	Saw Device LGS Crystal , 5.754 g/cm3 La3Ga5SiO14 Crystals , 5.754 g/cm3 La3Ga5SiO14 LGS Crystal

High Damage Threshold Piezoelectric Materials LGS Crystals For Saw Device

Langasite - Lanthanum Gallium Silicate, is a piezoelectric crystal. Though langasite was initially developed as a laser crystal, it revealed a remarkable combination of piezoelectric qualities, which opened up new opportunities to use the LGS crystal in radio frequency devices. The main applications of langasite crystals now are SAW filters and SAW resonators.

Main Properties:

Crystal Structure	regional system, group 33 a= 8.1783 c = 5.1014
Growth Method	Czochralski
Hardness	6.6 Moh's
Density	5.754 g/cm3
Melt Point	1470 o C ( phase transition point: N/A)
Thermal expansion (x10-6/ oC)	α 11: 5.10 α 33: 3.61
Acoustic velocity, SAW	2400 ( m/sec )
Frequency constant, BAW	1380 ( kHz/mm )
Piezoelectric coupling	K2 (%) BAW: 2.21 SAW: 0.3
Inclusions	N0

LGS Transmission Curve :

Saw Device High Damage Threshold Piezoelectric Effect LGS Crystal 0

Main Application :

electro-optic Q-switch
SAW device
BAW device
Sensor
High power high repetition rate all-solid-state laser
High and low temperature change the laser

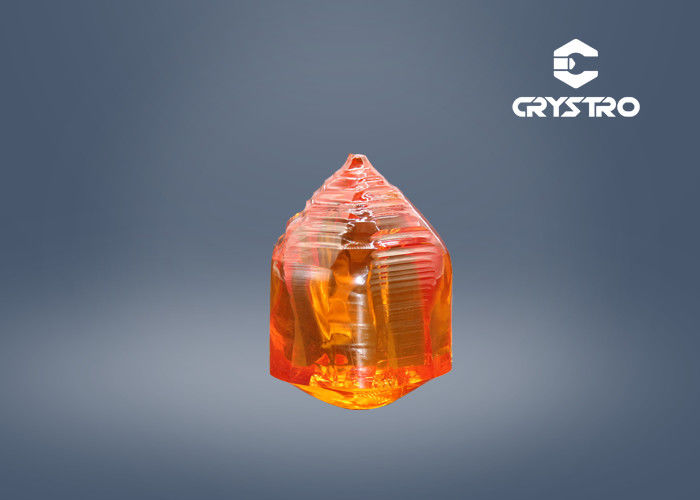

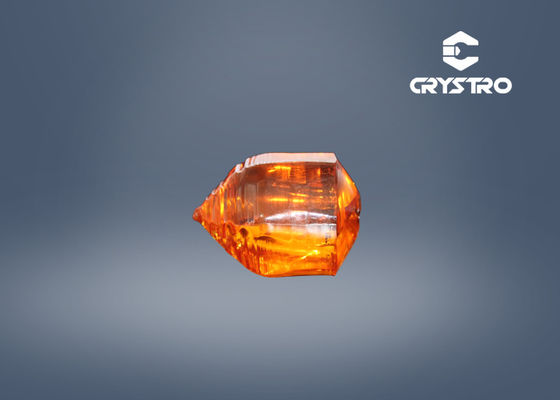

Product Details :

Saw Device High Damage Threshold Piezoelectric Effect LGS Crystal 1
