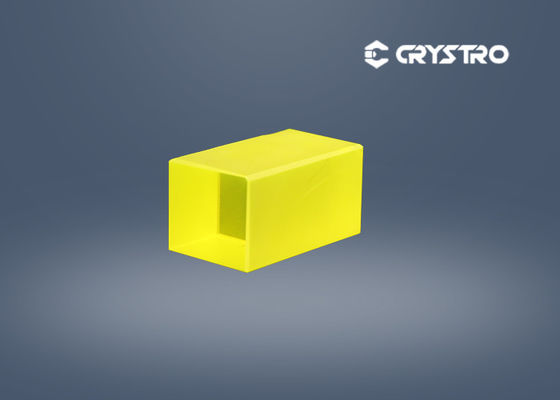

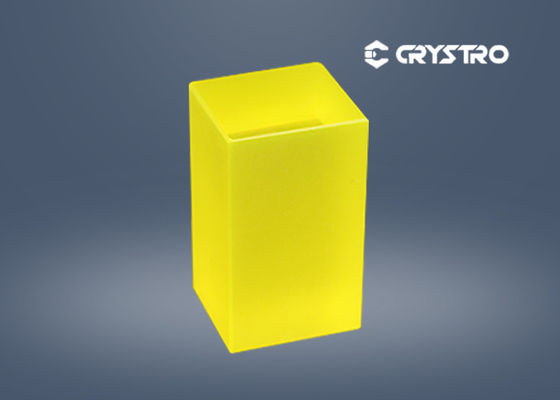

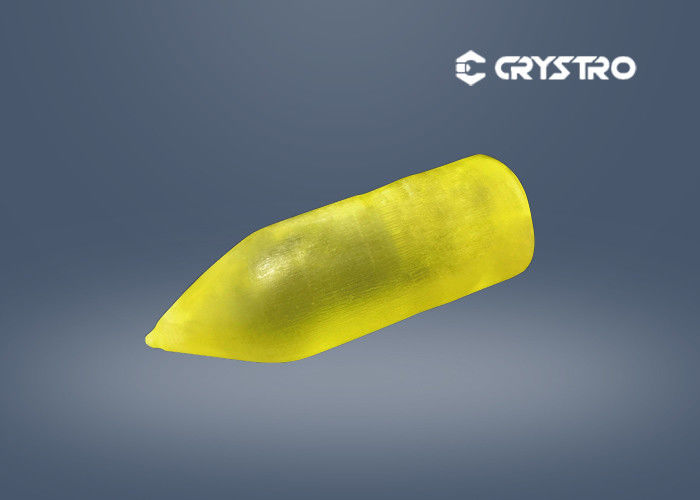

Gd3Al2Ga3O12 Ce:Doped Gadolinium Aluminium Gallium Garnet GAGG Crystal

Gd3Al2Ga3O12 Ce:Doped Gadolinium Aluminium Gallium Garnet GAGG Crystal
Gd3Al2Ga3O12 Ce:Doped Gadolinium Aluminium Gallium Garnet GAGG Crystal Gd3Al2Ga3O12 Ce:Doped Gadolinium Aluminium Gallium Garnet GAGG Crystal Gd3Al2Ga3O12 Ce:Doped Gadolinium Aluminium Gallium Garnet GAGG Crystal

Large Image :  Gd3Al2Ga3O12 Ce:Doped Gadolinium Aluminium Gallium Garnet GAGG Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRGAGG-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Ce:GAGG Chemical Formula: Ce:Gd3Al2Ga3O12
Growth Method: Czochralski Atomic Number (Effective): 54.4
Density: 6.63g/cm3 Melting Point: 1850℃
Hygroscopic: No Cleavage: No
High Light:

Gd3Al2Ga3O12 GAGG Crystal

,

Gadolinium Aluminium Gallium Garnet

,

Ce Gd3Al2Ga3O12 Aluminium Gallium Garnet



Ce Doped Gadolinium Aluminium Gallium Garnet Ce: GAGG Crystals



Introduction:



The Gadolinium Aluminum Gallium Garnet (Ce: GAGG) is a flavescent crystal with a high light output of 50000 ph/MeV, a short decay time of ∼50 ns, and a high density of 6.63 g/cm³.GAGG(Ce) has good stopping power, is physically rugged, and well suited to a broad range of applications. The major applications of GAGG include computed tomography(SPECT), gamma-ray, and Compton electron detection.





Main Advantages:

  • High output
  • High energy resolution
  • High density
  • No self-radiation
  • No moisture release



Main Application:

  • Medical Imaging - PET, PEM, SPECT, and CT
  • Specialist applications in high energy, nuclear, space, and medical physics
  • Scanning electron microscopy (SEM)



Main Properties:

Property Value
Chemical Formula Ce:Gd3Al2Ga3O12
Atomic Number (Effective) 54.4
Growth Method Czochralski
Density 6.63g/cm3
Mohs Hardness 8
Melting Point 1850℃
Thermal Expansion Coeff. TBA x 10‾⁶





Crystro offers:



Orientation Tolerance <0.5°
Thickness/Diameter Tolerance ±0.05mm
Parallel 10‘’
Perpendicular 5'
Surface Quality 10/5
Clear Aperture >90%
Chamfer <0.2*45°
Max Dimensions MaxΦ 60mm





















Gd3Al2Ga3O12 Ce:Doped Gadolinium Aluminium Gallium Garnet GAGG Crystal 0
