Product Details:
Payment & Shipping Terms:
|
| Product Name: | Free-space Isolator | Center Wavelength: | 780nm |
|---|---|---|---|
| Clear Aperture: | 5mm | Peak Isolation: | ≥35dB |
| Peak Transmission: | ＞93% | M2Degradation: | <10% |
| Polarizer Type: | High Power | Damage Threshold: | 10J/cm2@10ns |
| Optical Power(Average): | 20W/50W/Customized | Operating Wavelength Range: | +/-10nm |
| High Light: | Free Space Optical Isolators,Free Space farady Isolators,780nm Optical Isolators |
||

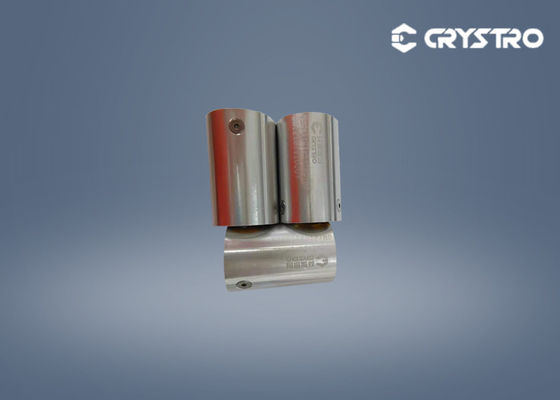

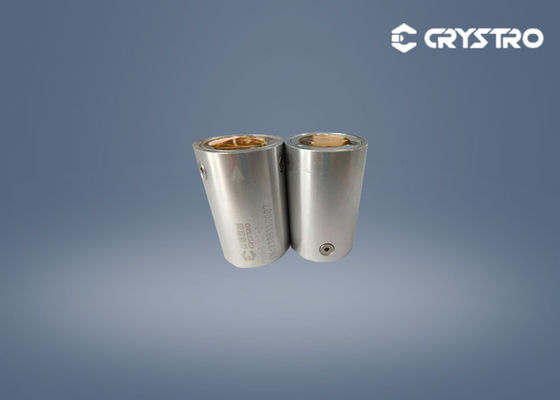

Free-Space Optical Isolators incorporate a Faraday Rotator and are specifically designed and manufactured to provide superior performance with high isolation, transmission, and power densities. Crystro's own magneto-optic crystal TGG, TSAG has the char of high extinction ratio, low absorption, low loss, etc. It is used in optical isolator to achieve reliable isolation and stable performance

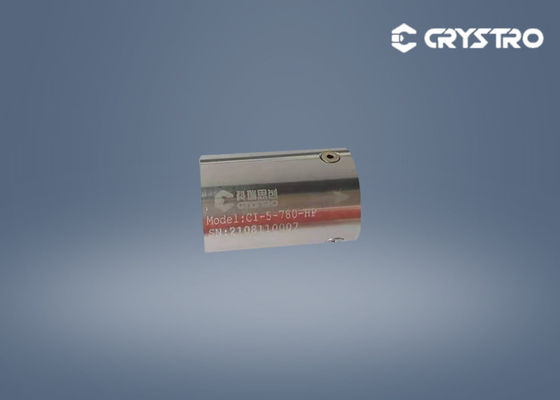

| Model No. | CI-5-780-HP |
| Center Wavelength | 780 nm |
| Operating Wavelength Range | ±10nm |
| Peak Transmission | >93% |
| Peak Isolation | ≥ 35dB |
| M2 Degradation | <10% |
| Clear Aperture | 5 mm |
| Optical Power(Average) | 20,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
