Clear Aperture 8mm Crystro Faraday Free Space Isolator

Certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
I'm Online Chat Now

Clear Aperture 8mm Crystro Faraday Free Space Isolator

Clear Aperture 8mm Crystro Faraday Free Space Isolator
Clear Aperture 8mm Crystro Faraday Free Space Isolator Clear Aperture 8mm Crystro Faraday Free Space Isolator

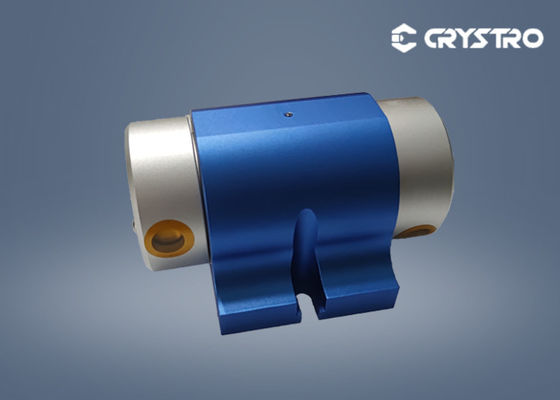

Large Image :  Clear Aperture 8mm Crystro Faraday Free Space Isolator

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRISO-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 6-8 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detailed Product Description
Product Name: Faraday Isolator Material: TGG Or TSAG
Center Wavelength: 405-1200nm Peak Transmission: >93%
Clear Aperture: 8mm Temperature: -20-70℃
Peak Isolation: >35dB Optical Power: 10,30,50,100W
High Light:

Faraday Free Space Isolator

,

8mm Free Space Isolator

,

8mm Faraday Optical Isolator






Clear Aperture 5mm High Reliability And Stability Crystro Faraday Free Space Isolator



Free-Space Optical Isolators incorporate a Faraday Rotator and are specifically designed and manufactured to provide superior performance with high isolation, transmission, and power densities. Each option effectively reduces feedback in the external cavity of diode laser systems and blocks reflections from free-space fiber coupling. Crystro's own magneto-optic crystal TGG, TSAG has the char of high extinction ratio, low absorption, low loss, etc. It is used in optical isolator to achieve reliable isolation and stable performance





Advantages :



  • High isolation
  • Low insertion loss
  • High reliability and stability
  • Extremely low polarization correlation loss and polarization dispersion





Specifications:



Material  TGG or TSAG
Center Wavelength  405-1200 nm
Operating Wavelength Range  ≥±10nm
Peak Transmission  >93%
Peak Isolation  >35dB
M2 Degradation  <10%
Clear Aperture  2-20 nm or others
Optical Power(Average)  10,30,50W or Specify
Damage Threshold  10J/cm2@ 10ns
Storage Temperature Range  -20-70℃
Tunable Temperature Range  10-30℃



Product details :

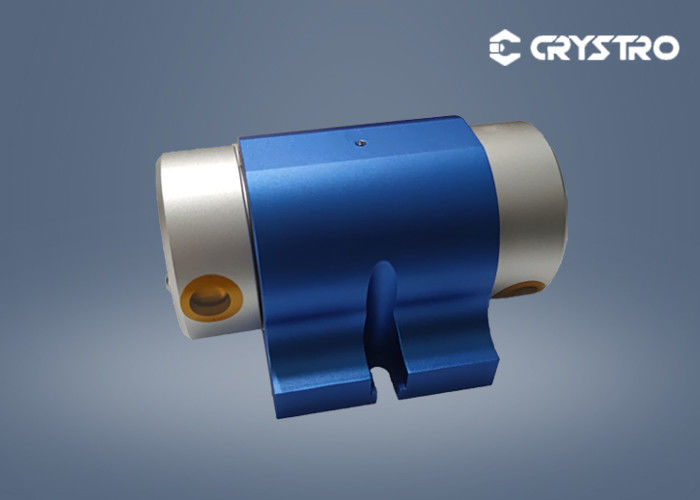

Clear Aperture 8mm Crystro Faraday Free Space Isolator 0
