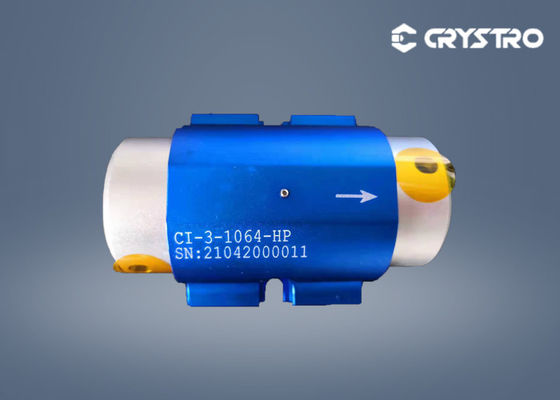

Crystro 3 mm passive TGG Free Space Optical Isolator

Crystro 3 mm passive TGG Free Space Optical Isolator
Crystro 3 mm passive TGG Free Space Optical Isolator Crystro 3 mm passive TGG Free Space Optical Isolator

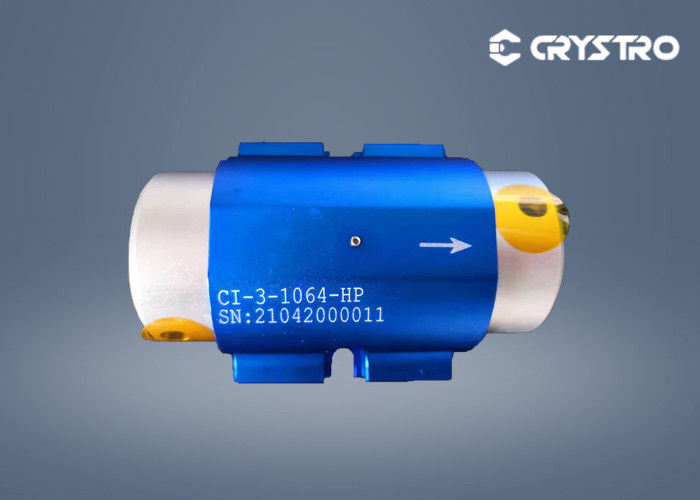

Large Image :  Crystro 3 mm passive TGG Free Space Optical Isolator

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRISO-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detailed Product Description
Product Name: Faraday Isolator Material: TGG Or TSAG
Center Wavelength: 405-1200nm Optical Power: 10,30,50,100W
Peak Transmission: >93% Clear Aperture: 3.5mm
Temperature: -20-70℃ Peak Isolation: >35dB
High Light:

TGG Free Space Isolators

,

TGG Free Space Optical Isolator

,

3.5mm Passive Optical Isolator




Crystro High damage threshold Clear Aperture 3mm Free-Space Isolators TGG Isolator



An optical isolator is a passive device that allows light to pass in one direction and prevents it from passing in the opposite direction. Its function is to limit the direction of light, so that light can only be transmitted in one direction, and the light reflected through the fiber echo can be well isolated by the optical isolator and improve the efficiency of lightwave transmission.

The free space type isolator can be divided into two categories: polarization-dependent type and polarization-independent type.







Advantages :



Crystro's own magneto-optic crystal TGG, TSAG has the characteristics of high extinction ratio, low absorption, low loss, etc. It is used in an optical isolator to achieve reliable isolation and stable performance.







Specifications:



Material  TGG or TSAG
Center Wavelength  405-1200 nm
Operating Wavelength Range  ≥±10nm
Peak Transmission  >93%
Peak Isolation  >35dB
M2 Degradation  <10%
Clear Aperture  2-20 nm or others
Optical Power(Average)  10,30,50W or Specify
Damage Threshold  10J/cm2@ 10ns
Storage Temperature Range  -20-70℃
Tunable Temperature Range  10-30℃





Product details :

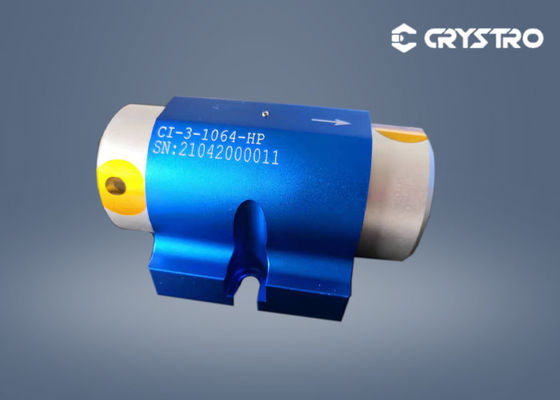

Crystro 3 mm passive TGG Free Space Optical Isolator 0
