Product Details:
Payment & Shipping Terms:
|
| Product Name: | Faraday Isolator | Material: | TGG Or TSAG |
|---|---|---|---|
| Center Wavelength: | 405-1200nm | Operating Wavelength Range: | ＞±15nm |
| Peak Transmission: | ＞93% | Clear Aperture: | 5mm |
| Temperature: | -20-70℃ | Peak Isolation: | ＞35dB |
| Optical Power: | 10,30,50,100W | ||
| High Light: | 5mm High Power Optical Isolator,35dB High Power Optical Isolator,5mm Free Space Optical Isolator |
||

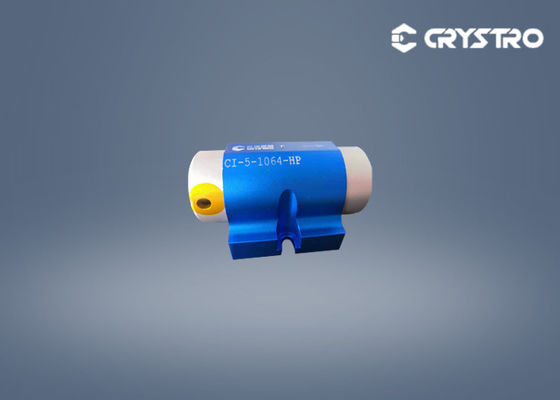

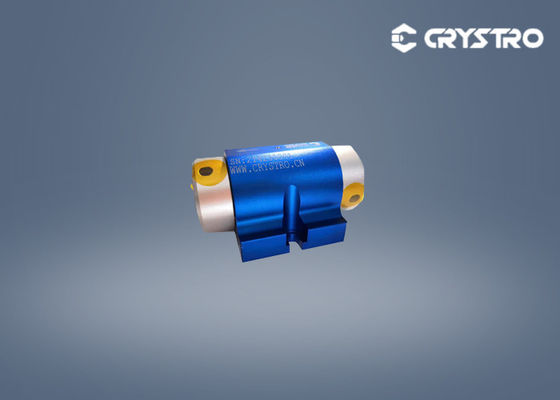

An optical isolator is a passive magneto-optic device based on the Faraday effect. It is an optical component that allows the transmission of light in only one direction and prevents unwanted feedback into an optical oscillator. Crystro offers isolators that are based on our own TGG or TSAG Faraday crystals of low loss and high optical power threshold.
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
● Fiber transmittance amplifiers
● Laser sensing system
● Ultrafast laser system
● Laser detection
● Laser precision machining
