Product Details:
Payment & Shipping Terms:
|

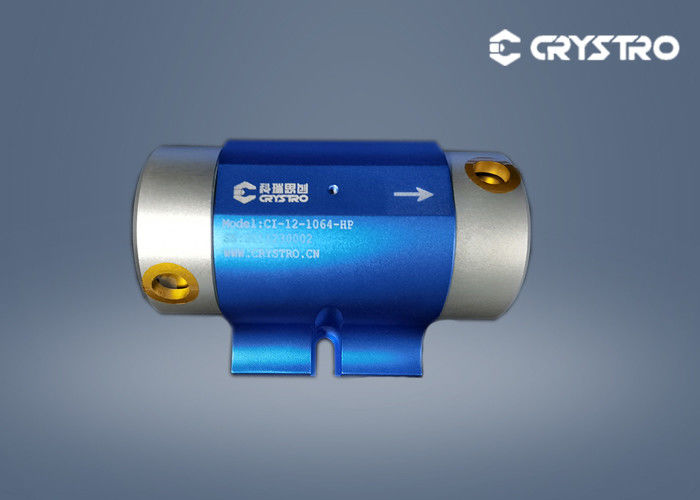

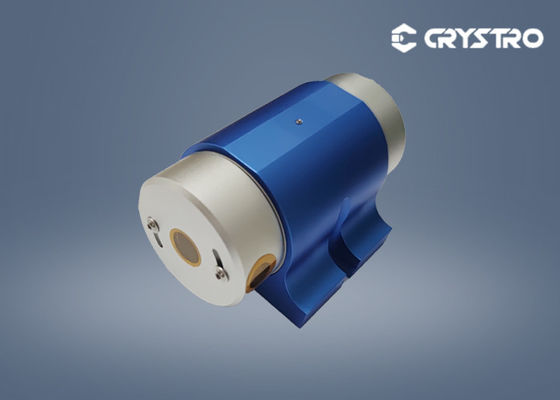

| Product Name: | Free Space Isolator | Crystal Material: | TGG |
|---|---|---|---|
| Center Wavelength: | 1064nm | Peak Transmission: | ＞93% |
| Clear Aperture: | 12 Mm | Peak Isolation: | ＞33dB |
| Storage Temperature: | -20-70℃ | Operating Temperature: | 10℃-30℃ |
| High Light: | 1064nm Faraday Optical Isolator,12mm Faraday Optical Isolator,TGG Faraday Isolator |
||
The isolator is a passive device that allows light to pass in one direction and prevents it from passing in the opposite direction. Its function is to limit the direction of light, so that light can only be transmitted in one direction, and the light reflected through the fiber echo can be well isolated by the optical isolator and improve the efficiency of lightwave transmission. The free space type isolator can be divided into two categories: polarization-dependent type and polarization-independent type.
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
