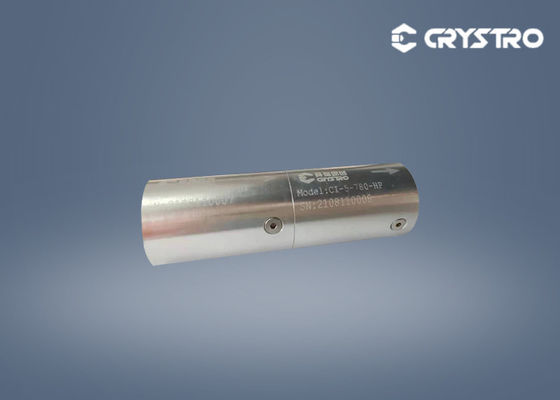

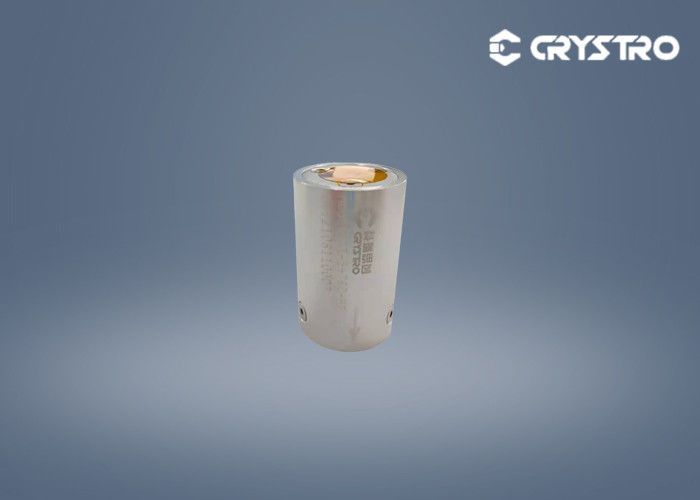

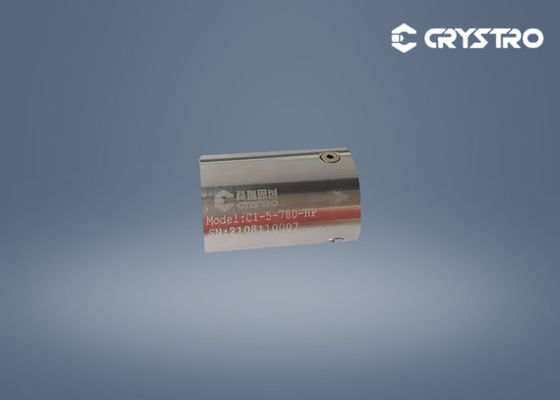

Crystro Clear Aperture 5mm Free Space Isolator

Crystro Clear Aperture 5mm Free Space Isolator
Crystro Clear Aperture 5mm Free Space Isolator Crystro Clear Aperture 5mm Free Space Isolator Crystro Clear Aperture 5mm Free Space Isolator

Large Image :  Crystro Clear Aperture 5mm Free Space Isolator

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: CI-5-780-HP
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detailed Product Description
Product Name: Optical Isolator Clear Aperture: 5mm
Center Wavelength: 780nm Operating Wavelength Range: +/-10nm
Peak Transmission: >93% Peak Isolation: ≥35dB
Polarizer Type: HP Optical Power: 20W/50W/Other
High Light:

5mm Free Space Isolator

,

Clear Aperture Free Space Isolator

,

Clear Aperture Optical Isolator




Crystro Clear Aperture 5mm Free-Space Isolator



An optical isolator is a passive device that allows light to pass in one direction and prevents it from passing in the opposite direction. Its function is to limit the direction of light, so that light can only be transmitted in one direction, and the light reflected through the fiber echo can be well isolated by the optical isolator and improve the efficiency of lightwave transmission.

The free space type isolator can be divided into two categories: polarization-dependent type and polarization-independent type.







Advantages :



Crystro's own magneto-optic crystal TGG, TSAG has the characteristics of high extinction ratio, low absorption, low loss, etc. It is used in an optical isolator to achieve reliable isolation and stable performance.







Specifications:



Model No.  CI-5-780-HP
Center Wavelength 780 nm
Operating Wavelength Range  ±10nm
Peak Transmission  >93%
Peak Isolation ≥ 35dB
M2 Degradation <10%
Clear Aperture 5 mm
Optical Power(Average)  20,50W or Specify
Damage Threshold  10J/cm2@ 10ns
Storage Temperature Range  -20-70℃
Tunable Temperature Range  10-30℃





Product details :

Crystro Clear Aperture 5mm Free Space Isolator 0
