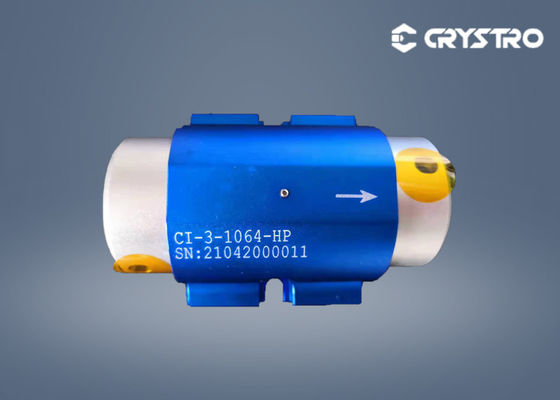

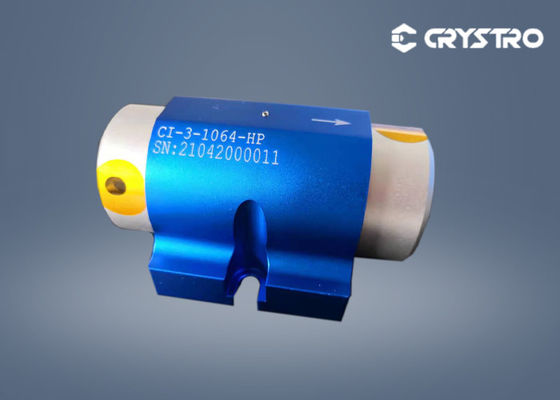

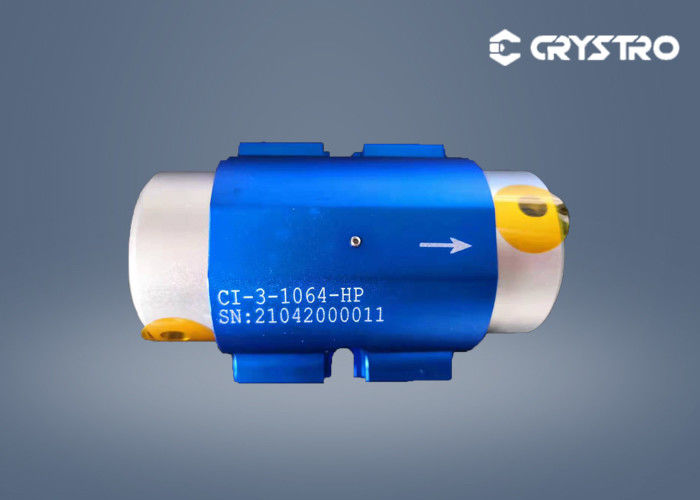

| Product: | Free Space Isolator | Clear Aperture: | 3 Mm |
|---|---|---|---|
| Center Wavelength: | 1064nm | Operating Wavelength Range: | ＞±10nm |
| Peak Transmission: | ＞95% | Peak Isolation: | ＞35dB |
| M2 Degradation: | ＜10% | Damage Threshold: | 10 J/cm2 @ 10ns |
| High Light: | TSAG free space isolator,1064nm free space isolator,1064nm Optical Isolator |
||
An optical isolator is a passive device that allows light to pass in one direction but prevents it from passing in the opposite direction. The function is to restrict the direction of light so that the light can only be transmitted in one direction, and the light reflected by the optical fiber echo can be well isolated by the optical isolator, which improves the efficiency of lightwave transmission. Free-space isolators can be divided into polarization-dependent and polarization-independent categories, and are widely used in various optical systems and equipment, such as lasers, optical communication systems, and optical amplifiers.
Crystro's own magneto-optic crystal TGG, TSAG has the characteristics of high extinction ratio, low absorption, low loss, etc. It is used in an optical isolator to achieve reliable isolation and stable performance.
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
