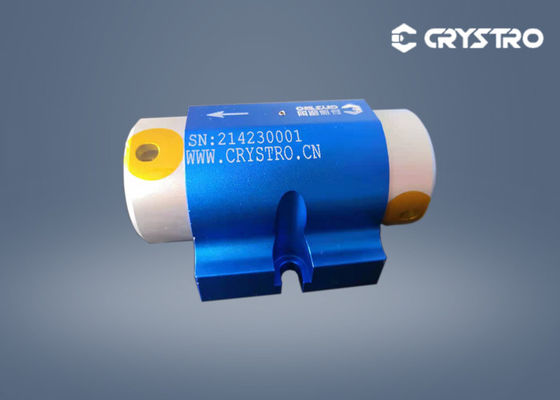

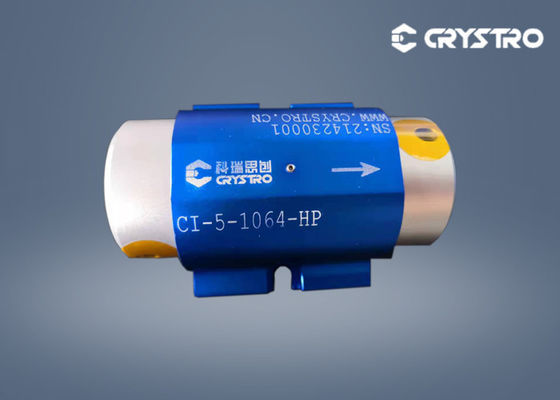

| Name: | Faraday Isolator | Material: | TGG Crystal |
|---|---|---|---|
| Center Wavelength: | 1064nm | Clear Aperture: | 5mm |
| Peak Transmission: | ＞95% | Peak Isolation: | ＞35dB |
| Optical Power: | 10,30,50,100W | ||
| High Light: | Clear Aperture faraday rotation isolator,5mm faraday rotation isolator,Clear Aperture faraday optical isolator |
||
1. Introduction :
The free-space optical isolator is a passive optical device based on the Faraday effect of magneto-optical crystals that only allows light to propagate in one direction in the optical system. It can effectively reduce the external cavity feedback of the diode laser system and cut off the reflection of the free space fiber coupling. At the same time, the stability of the optical system is increased, feedback is eliminated, and damage to sensitive optical components is avoided. Free-space isolators can be divided into polarization-dependent and polarization-independent categories, and are widely used in various optical systems and equipment.
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
Superior Performance and Reliability
High Isolation / Low Insertion Loss
Low, Medium, and High Power Options
High Power Models with Exit Ports for
Return Signal Monitoring or Beam Injection
User Tunable or Fixed Wavelength
Wide Tuning Range
Broadband Optical Isolator Models
