Co2 MgAl2O4 Nonlinear Crystals Passive Q Switch For Lasers Emitting

Certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
I'm Online Chat Now

Co2 MgAl2O4 Nonlinear Crystals Passive Q Switch For Lasers Emitting

Co2 MgAl2O4 Nonlinear Crystals Passive Q Switch For Lasers Emitting
Co2 MgAl2O4 Nonlinear Crystals Passive Q Switch For Lasers Emitting Co2 MgAl2O4 Nonlinear Crystals Passive Q Switch For Lasers Emitting Co2 MgAl2O4 Nonlinear Crystals Passive Q Switch For Lasers Emitting

Large Image :  Co2 MgAl2O4 Nonlinear Crystals Passive Q Switch For Lasers Emitting

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRCO-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Detailed Product Description
Material: Co2+:MgAl2O4 Mohs Hardness: 8
Density: 3.62 G/cm3 Melting Point: 2105℃
Crystal Structure: Cubic Refractive Index: 1.6-1.75
Thermal Expansion Coefficient: 6.14 × 10-6 K-1 Damage Threshold: >500 MW/cm2
High Light:

Co2 MgAl2O4 Nonlinear Crystals

,

3.62g/cm3 Nonlinear Crystals

,

3.62g/cm3 Co2 MgAl2O4


Co: MgAl2O4 Co: spinel passive q-switch crystal for Er: glass lasers



Introduction:

Co: Spinel(Co2+:MgAl2O4) is a recently developed material, which has been proven to be a very effective passive Q-switch in lasers emitting in the range of 1,2 µm - 1,6 µm, especially suitable for the 1.54μm eye-safe Er glass laser. Passive Q-switching or saturable absorber can generate high-power laser pulses without using electro-optic Q switching, which can effectively reduce the size of the device and avoid the use of high-voltage power.

Spinel is a hard, stable crystal that can be polished to the desired index. Cobalt particles replace magnesium ions without additional charge compensation. In the 1.3μm attachment, it has a particularly high excited-state absorption cross-section (3.5×10-19cm2).



Features:

  • Rarely excited absorption
  • The high constant of the Q-switch
  • High absorption section
  • Long excited lifetime
  • Evenly distributed cobalt
  • Wide absorption band



Applications

  • Passive Q-switch for Er: Glass lasers @1,54 µm
  • Laser Ranging
  • Medical Applications

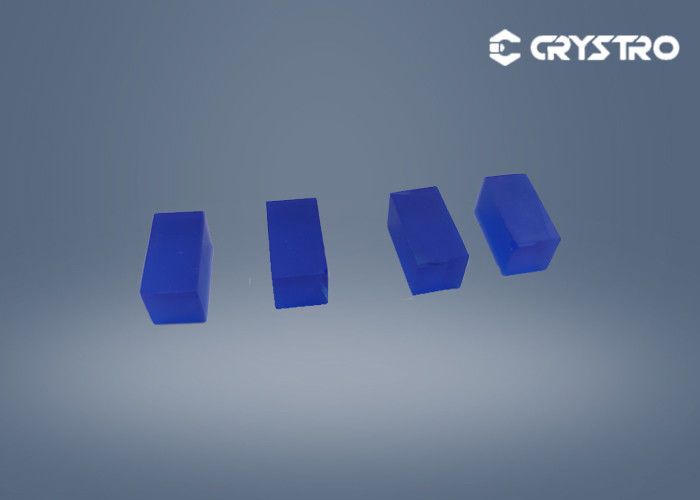

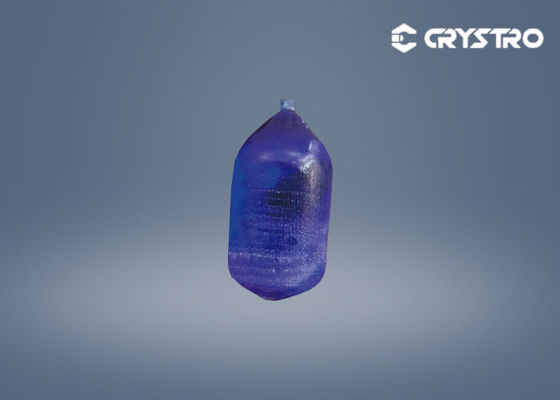

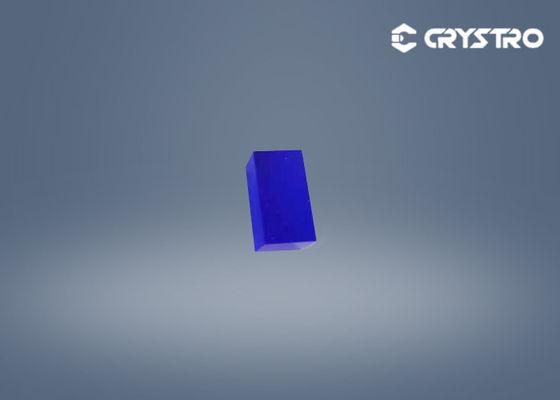

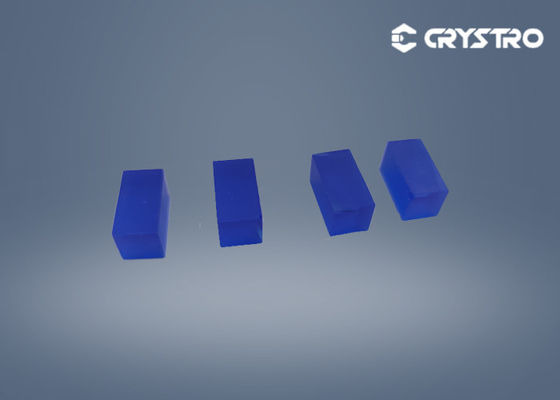

Picture :

Co2 MgAl2O4 Nonlinear Crystals Passive Q Switch For Lasers Emitting 0
