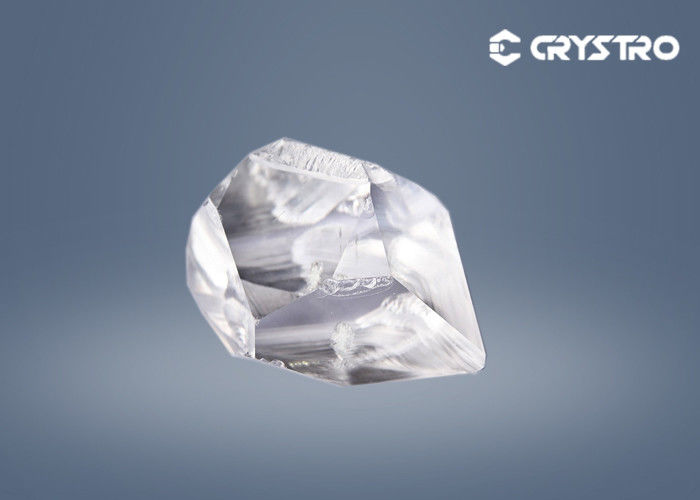

Wide Transparency Region LBO Crystals Lithium Triborate Nonlinear Crystals

Wide Transparency Region LBO Crystals Lithium Triborate Nonlinear Crystals
Wide Transparency Region LBO Crystals Lithium Triborate Nonlinear Crystals

Large Image :  Wide Transparency Region LBO Crystals Lithium Triborate Nonlinear Crystals

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRLBO-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Lithium Triborate Chemical Formula: LiB3O5
Density: 2.47 G/cm3 Mohs Hardness: 6
Crystal Structure: Orthorhombic Optical Symmetry: Negative Biaxial
Lattice Parameters: A = 8,46 Å, B = 7,38 Å , C = 12,717 Å Transparency Region At “0” Transmittance Level: 155 – 3200 Nm
High Light:

LBO Lithium Triborate Crystal

,

LBO Nonlinear Crystals

,

Lithium Triborate Nonlinear Crystals



LBO Crystal Introduction:

LBO crystal is a nonlinear optical material. It has a wide light transmission range (0.16~2.6μm), large nonlinear optical coefficient, high light damage threshold (approximately 4.1 times of KTP, 1.83 times of KDP, 2.15 times of BBO), and good chemical stability and anti-deliquescence.

It can be used for dual-frequency and triple-frequency of 1.06μm laser and can achieve phase matching of type I and type II. LBO crystal can make laser frequency doubler and optical parametric oscillator.





Name Lithium Triborate
Crystal structure orthorhombic, mm2
Optical symmetry Negative biaxial
Space group Pna21
Density 2.47 g/cm3
Mohs hardness 6
Optical homogeneity ∂n = 10-6 cm-1
Transparency region at “0” transmittance level 155 – 3200 nm
The linear absorption coefficient at 1064 nm < 0.01 % cm-1





LBO Crystal Features :

  • High damage threshold
  • Wide acceptance angle and small walk-off angle
  • Wide transparency region
  • Type I and type II non-critical phase-matching (NCPM) in a wide wavelength range;
