Potassium Titanyl Phosphate KTP Crystal Optical Nonlinear Crystal

Potassium Titanyl Phosphate KTP Crystal Optical Nonlinear Crystal
Potassium Titanyl Phosphate KTP Crystal Optical Nonlinear Crystal

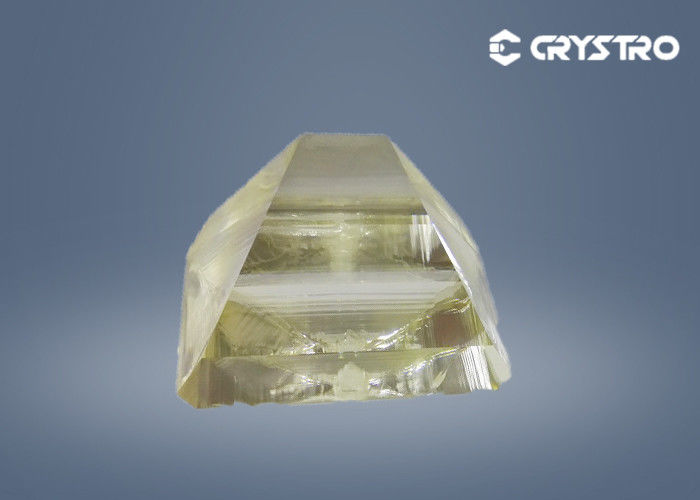

Large Image :  Potassium Titanyl Phosphate KTP Crystal Optical Nonlinear Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRKTP-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Paypal,Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Potassium Titanyl Phosphate Density: 3.01 G/cm3
Chemical Formula: KTiOPO4 Crystal Structure: Orthorhombic
Melting Point: 1172℃ Mohs Hardness: 5
Thermal Conductivity: 13 W/m*K Transparency Range: 350–4500 Nm
High Light:

KTP Optical Nonlinear Crystal

,

Nonlinear Optical KTP Crystal

,

Potassium Titanyl Phosphate KTP Crystal






1.KTP Crystal Introduction :



Potassium Titanyl Phosphate (KTiOPO3 or KTP) is an excellent nonlinear optical material suitable for use in many optical systems. It has excellent frequency doubling performance: large nonlinear coefficient, stable physical property,  and little change of phase matching condition with temperature.





Name Potassium Titanyl Phosphate
Mohs hardness 5
Lattice constants, Å a = 6.404, b = 10.616, c = 12.814, z = 8
Density, g/cm3 3.01
Melting point, °C 1172
Transition temperature, °C 936
Thermal conductivity, W/m*K 13
Thermal expansion coefficients, °C-1 ax = 11×10-6, ay = 9×10-6, az = 0.6×10-6
Transparency range 350-4500 nm





2.KTP Crystal Features:

  • Large nonlinear optical(NLO) coefficients

  • Wide angular bandwidth and small walk-off angle

  • Broad temperature and spectral bandwidths

  • High electro-optic(E-O) coefficient and low dielectric constant

  • Non-hygroscopic, good chemical and mechanical properties





3.KTP Crystal Applications :

  • Frequency doubling(SHG) of Nd-doped lasers for green/red output

  • Frequency mixing(SFM) of Nd lasers and diode lasers for blue output

  • Parametric sources(OPG, OPA, and OPO) for 0. 6mm-4.5mm tunable output

  • E-O modulators, optical switches, directional couplers
