Cubic Co Spinel Passive Q Switch Crystal For High Power Laser

Cubic Co Spinel Passive Q Switch Crystal For High Power Laser
Cubic Co Spinel Passive Q Switch Crystal For High Power Laser Cubic Co Spinel Passive Q Switch Crystal For High Power Laser Cubic Co Spinel Passive Q Switch Crystal For High Power Laser

Large Image :  Cubic Co Spinel Passive Q Switch Crystal For High Power Laser

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Detailed Product Description
Chemical Formula: Co2+:MgAl2O4 Mohs Hardness: 8
Melting Point: 2105℃ Density: 3.62 G/cm3
Refractive Index: 1.69@1540nm Crystal Structure: Cubic
Damage Threshold: >500 MW/cm2 Lattice Parameters: A=8.07Å
High Light:

Co spinel Q Switch Crystal

,

Passive Q Switch Crystal

,

Cubic Co spinel


Co2+:MgAl2O4 Co: Spinel Passive Q-Switch Crystal For High Power Laser



Introduction:

Cobalt-doped magnesium aluminate spinel (Co: MgAl2O4) is a relatively new material for passive Q-switching in lasers emitting from 1.2 to 1.6 μm, in particular, for eye-safe 1.54 μm Er: glass laser, but also works at 1.44 μm and 1.34 μm wavelengths.



High absorption cross-section (3.5×10-19 cm2) permits Q-switching of Er: glass laser without intracavity focusing both with flash-lamp and diode-laser pumping. Negligible excited-state absorption results in high contrast of Q-switch, i.e. the ratio of initial (small signal) to saturated absorption is higher than 10.



Crystro can customize Co: spinel crystals of different sizes according to customer requirements and can provide product coating services



Features:

  • Chemical stability
  • UV resistant
  • Good thermal conductivity
  • High damage threshold (> 500 MW/cm2)



Applications

  • Passive Q-switch for Er: Glass lasers @1,54 µm
  • Laser Ranging
  • Medical Applications

Picture :

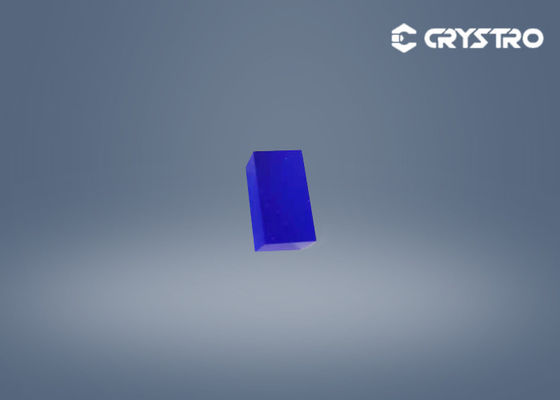

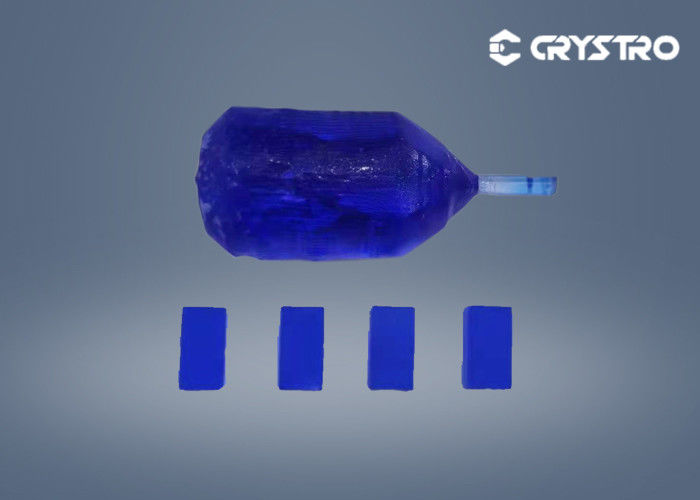

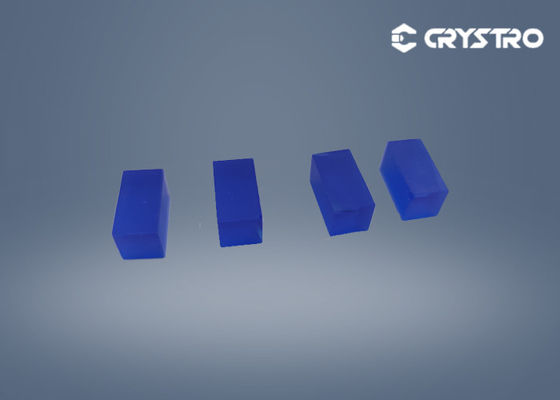

Cubic Co Spinel Passive Q Switch Crystal For High Power Laser 0
