High Damage Threshold Co2+:MgAl2O Nonlinear Optical Crystals

High Damage Threshold Co2+:MgAl2O Nonlinear Optical Crystals
High Damage Threshold Co2+:MgAl2O Nonlinear Optical Crystals High Damage Threshold Co2+:MgAl2O Nonlinear Optical Crystals High Damage Threshold Co2+:MgAl2O Nonlinear Optical Crystals

Large Image :  High Damage Threshold Co2+:MgAl2O Nonlinear Optical Crystals

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Detailed Product Description
Material: Co2+:MgAl2O4 Crystal Structure: Cubic
Density: 3.62 G/cm3 Mohs Hardness: 8
Melting Point: 2105℃ Refractive Index: 1.6-1.75
Thermal Expansion Coefficient: 6.14 × 10-6 K-1 Damage Threshold: >500 MW/cm2
High Light:

UV resistant nonlinear optical crystals

,

1.54µm nonlinear optical crystals

,

1.54µm q switch crystals


High Damage Threshold Co: Spinel Crystals Passive Q-Switch Crystal



Introduction:

Co2+: MgAl2O4 is a relatively new saturable absorption passive Q-switch material, suitable for 1.2~1.6μm laser emission, especially suitable for the 1.54μm eye-safe Er glass laser. Passive Q-switching or saturable absorber can generate high-power laser pulses without using electro-optic Q switching, which can effectively reduce the size of the device and avoid the use of high-voltage power.

Spinel is a hard, stable crystal that can be polished to the desired index. Cobalt particles replace magnesium ions without additional charge compensation. In the 1.3μm attachment, it has a particularly high excited-state absorption cross-section (3.5×10-19 cm2), so that the flash lamp and the laser-pumped Er glass laser do not need to be focused in the cavity.



Features:

  • Chemical stability
  • UV resistant
  • Good thermal conductivity
  • High damage threshold (> 500 MW/cm2)



Applications

  • Passive Q-switch for Er: Glass lasers @1,54 µm
  • Laser Ranging
  • Medical Applications

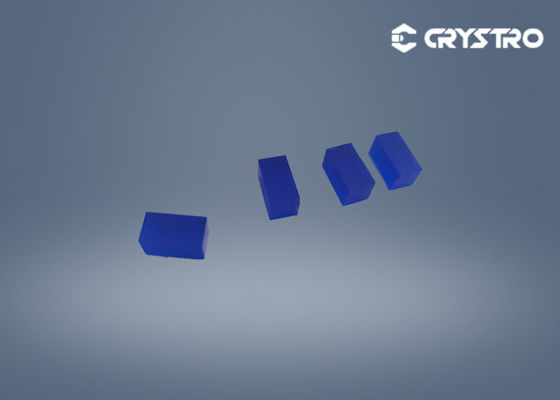

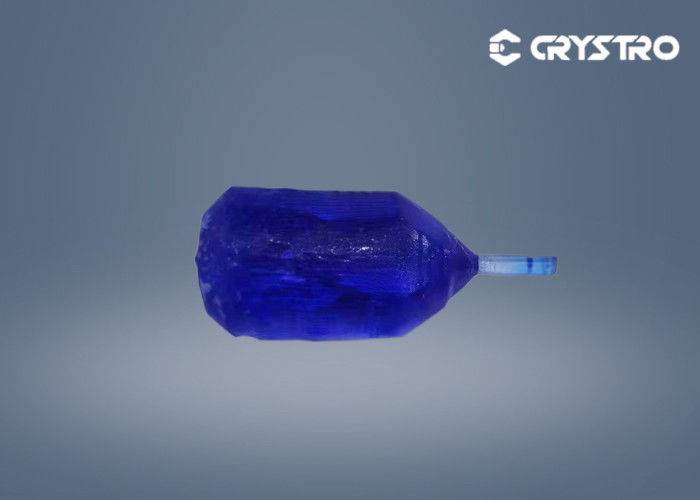

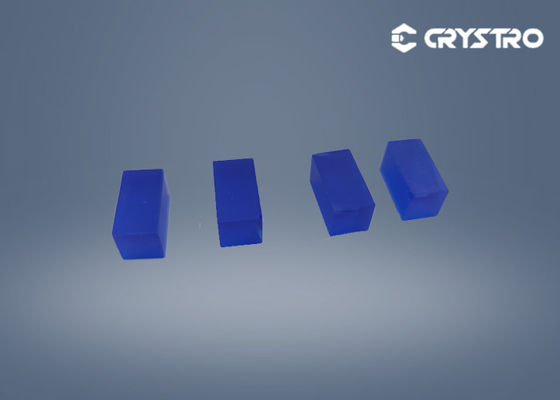

Picture :

High Damage Threshold Co2+:MgAl2O Nonlinear Optical Crystals 0
