Product Details:
Payment & Shipping Terms:
|

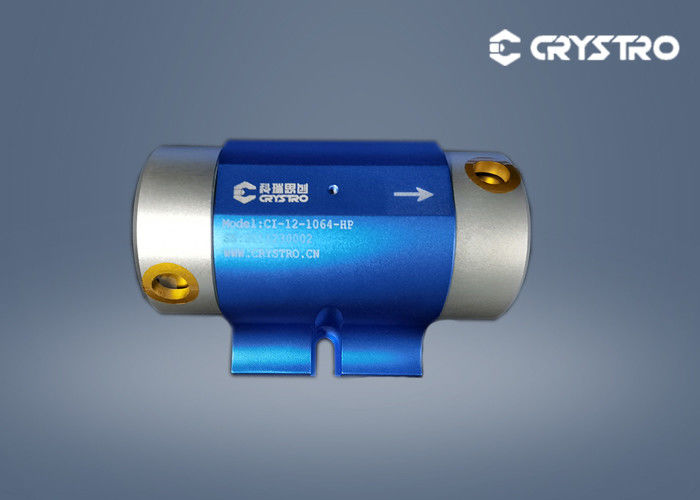

| Product Name: | Optical Isolator | Material: | TGG |
|---|---|---|---|
| Center Wavelength: | 1064nm | Clear Aperture: | 12mm |
| Type: | High Power | Operating Wavelength Range: | ＞±15nm |
| Peak Transmission: | ＞93% | Temperature: | -20-70℃ |
| Peak Isolation: | ＞35dB | ||
| High Light: | 12mm free space optical isolator,1064nm free space optical isolator,12mm faraday optical isolator |
||
An optical isolator is a passive device that allows light to pass in one direction but prevents it from passing in the opposite direction. The function is to limit the direction of the light so that the light can only be transmitted in a single direction, and the light reflected by the optical fiber echo can be well isolated by the optical isolator, which improves the efficiency of lightwave transmission.
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
● Fiber transmittance amplifiers
● Laser sensing system
● Ultrafast laser system
● Laser detection
● Laser precision machining
