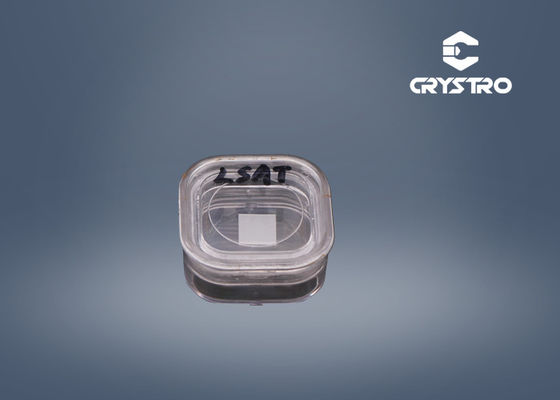

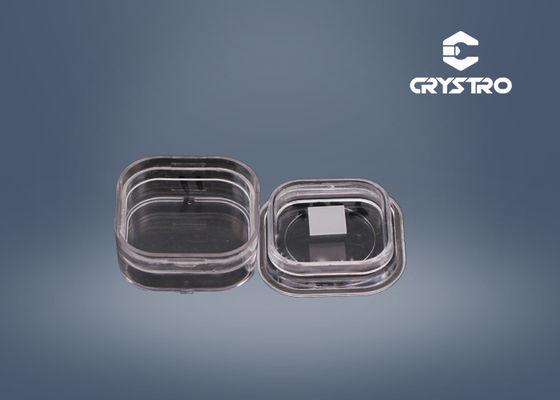

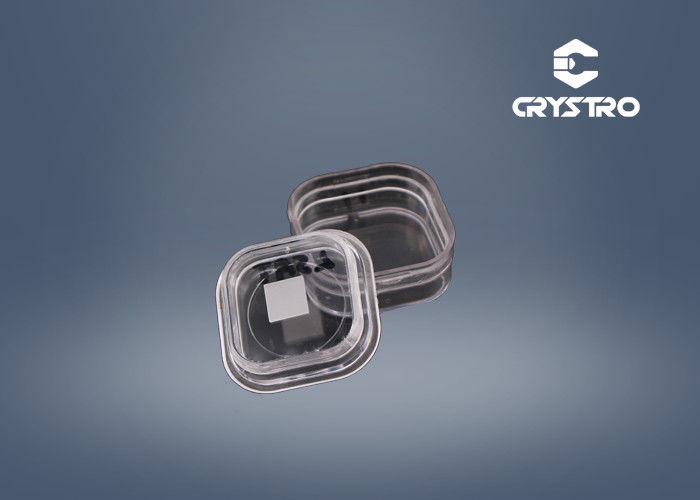

10*10*1mm LSAT Substrate Thin Film Optical Single Crystal Substrate

10*10*1mm LSAT Substrate Thin Film Optical Single Crystal Substrate
10*10*1mm LSAT Substrate Thin Film Optical Single Crystal Substrate 10*10*1mm LSAT Substrate Thin Film Optical Single Crystal Substrate 10*10*1mm LSAT Substrate Thin Film Optical Single Crystal Substrate

Large Image :  10*10*1mm LSAT Substrate Thin Film Optical Single Crystal Substrate

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRLSAT-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: LSAT Substrate Size: 10*10*1mm
Polish: SSP Or DSP Growth Method: Czochralski
Density: 6.74 G/cm3 Hardness: 6.5 Mohs
Melting Point: 1840 ℃ Lattice Parameters: A= 3.868A
Permittivity: ε = 22
High Light:

10*10*1mm Single Crystal Substrate

,

Thin Film Optical Substrate

,

10*10*1mm LSAT Substrate

10*10*1mm LSAT (Lanthanum Strontium Aluminum Tantalum Oxide) Substrate For Epitaxial Oxide Thin Films



Introduction:

LSAT crystals are grown by the Czochralski method and typically used as a substrate for epitaxial growth of thin films in ferroelectric and high-temperature superconductor devices. It is expected to replace lanthanum aluminate (LaAlO3) and strontium titanate (SrTiO3) substrate, which is used for epitaxial oxide thin films for magnetic ferro-electronic and superconductive devices.






Technical parameters:



Crystal Structure Cubic Polishing Single side / double side
Density 6.74 g/cm3 Orientation  <100><110><111>
Hardness 6.5 Mohs Dimension 10*10*0.5 mm,20*20*0.5 mm
Lattice Parameters a= 3.868A   10*10*1 mm,  20*20*1mm
Melting Point 1840 Ra: ≤5Å(5µm×5µm)
Redirection the edge 2°(special in 1°) Customized Special size and orientation are available for request



Product details:

10*10*1mm LSAT Substrate Thin Film Optical Single Crystal Substrate 0
