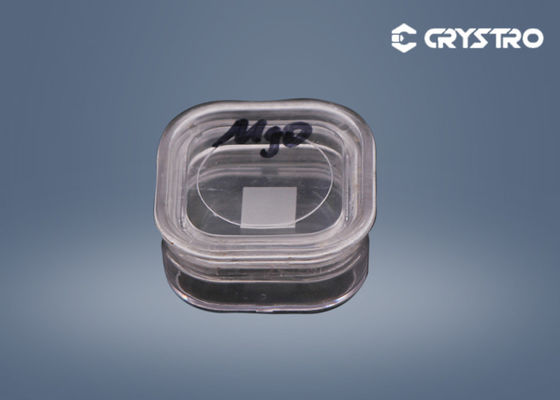

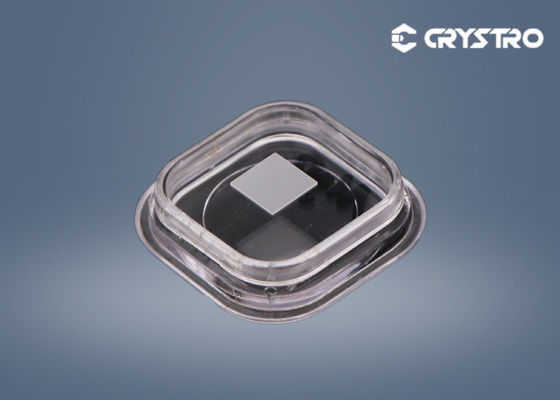

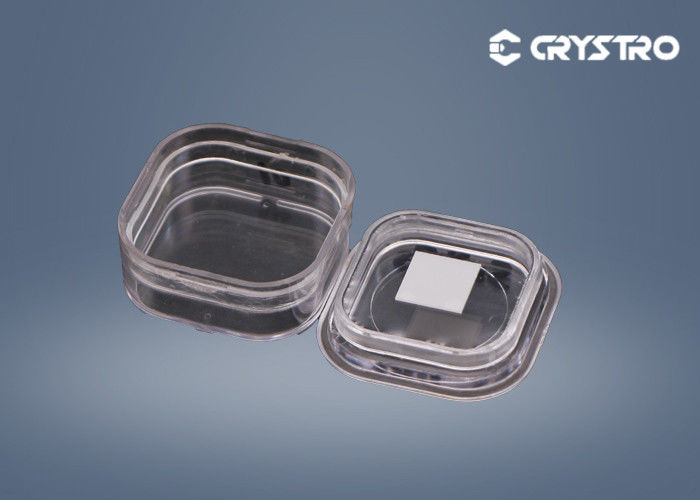

Ferro Magnetic Thin Films Magnesium Oxide MgO Substrate

Ferro Magnetic Thin Films Magnesium Oxide MgO Substrate
Ferro Magnetic Thin Films Magnesium Oxide MgO Substrate Ferro Magnetic Thin Films Magnesium Oxide MgO Substrate Ferro Magnetic Thin Films Magnesium Oxide MgO Substrate

Large Image :  Ferro Magnetic Thin Films Magnesium Oxide MgO Substrate

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRMGO-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Magnesium Oxide Chemical Formula: MgO
Orientation: [100] [100] [111] Size: 10*10*0.5mm
Lattice Parameters: A = 4.216 Å Melting Point: 2852 ℃
Density: 3.58 G/cm3 Hardness: 5.5~6 Mohs
Polish: Single Side Or Double Sides
High Light:

3.58 g/cm3 MgO Substrate

,

Thin Film MgO Substrate

,

MgO Magnesium Oxide Substrate

Good thermal properties Magnesium Oxide MgO Substrate For Ferro Magnetic Thin Films



Introduction:

MgO (Magnesium Oxide) - is widely used as a single crystal substrate for the production of magnetic film, optical film, and high-temperature superconducting films. Because Its dielectric constant and loss microwave band are very small.







Applications:



  • high TC superconductor thin film substrates
  • Ferromagnetic thin films substrates
  • Photo-electronic substrates





Technical parameters:



  Crystal Structure  Cubic  Dielectric Constants  9.80
 Density  3.58 g/cm3  Polishing  Single or double side polished
 Hardness  5.5~6 Mohs  Orientation <100><110><111>
 Lattice Parameters  a = 4.216 Å  Size

 10*10*0.5mm, 10*10*1mm

 20*20*0.5mm ,20*20*1mm

 Melting Point  2852 ℃  Customized  Available



Product details :

Ferro Magnetic Thin Films Magnesium Oxide MgO Substrate 0
