Film Growth Strontium Titanate Crystal Srtio3 Substrates

Name: Film Growth Strontium Titanate Crystal Srtio3 Substrates
Brand: Crystro
SKU: CRSTO-2
Rating: 4.6 (199 reviews)

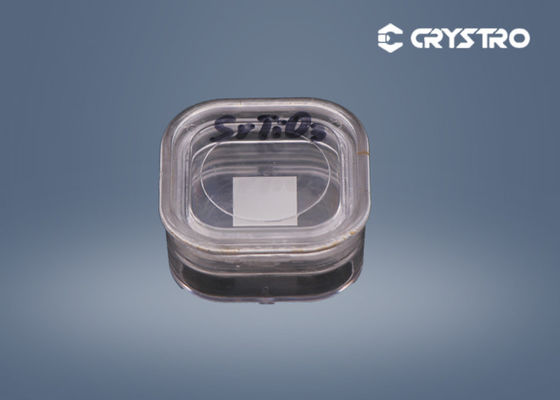

Large Image : Film Growth Strontium Titanate Crystal Srtio3 Substrates

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRSTO-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Product Name:	Strontium Titanate	Chemical Formula:	SrTiO3
Orientation:	[100] [110] [111]	Size:	10 Mm × 10 Mm × 0.5 Mm
Density:	5.175 (g/cm3)	Melting Point:	2080 ℃
Hardness:	6 -6.5 (mohs)	Crystal Structure:	Cubic
Lattice Parameters:	A = 3.905Å
High Light:	Strontium Titanate Srtio3 Substrates , Srtio3 Substrates , Srtio3 Strontium Titanate Crystal

Good Physical Properties SrTiO3 Strontium Titanate Crystal Substrates for film growth

Introduction:

Strontium Titanate (SrTiO3) substrate is commonly used as a substrate material for high-temperature superconducting oxide thin film. Because the SrTiO3 single crystal provides a good lattice match to most materials with Perovskite structure.

Technical parameters:
Crystal Structure	Cubic	Polishing	Single side / double side
Density	5.175 g/cm3	Orientation	<100><110><111>
Hardness	6-6.5 Mohs	Dimension	550.5 mm, 10100.5 mm,20200.5 mm
Lattice Parameters	a = 3.905Å		551 mm, 10101 mm, 20201mm
Melting Point	2080 ℃	Customized	Available

Product details:

Tag:

Single Crystal MgO Substrate,

MgO Magnesium Oxide Substrate,

MgO Single Crystal Substrate
