Product Details:
Payment & Shipping Terms:
|

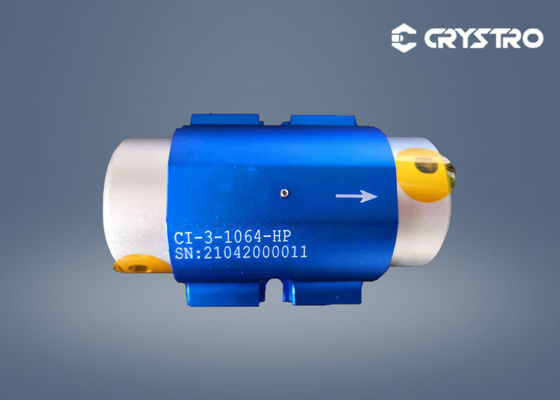

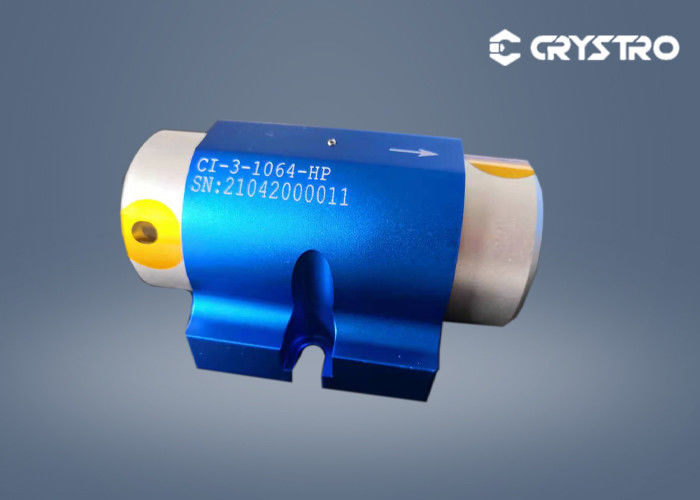

| Product Name: | Faraday Isolator | Material: | TGG Or TSAG |
|---|---|---|---|
| Center Wavelength: | 405-1200nm | Operating Wavelength Range: | ＞±15nm |
| Peak Transmission: | ＞93% | Clear Aperture: | 3.5mm |
| Temperature: | -20-70℃ | Peak Isolation: | ＞35dB |
| Optical Power: | 10,30,50,100W | ||
| High Light: | TGG Free Space Isolator,3.5mm Free Space Isolator,Free Space Optical Isolator |
||
An optical isolator is a passive device that allows light to pass in one direction and prevents it from passing in the opposite direction. Its function is to limit the direction of light, so that light can only be transmitted in one direction, and the light reflected through the fiber echo can be well isolated by the optical isolator and improve the efficiency of lightwave transmission.
The free space type isolator can be divided into two categories: polarization-dependent type and polarization-independent type.
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
