| Porduct Name: | Faraday Isolator | Aperture: | 3mm,3.5mm,5mm,8mm,12mm And Others |
|---|---|---|---|
| Optical Power: | 10.30.50.100W Or Customized | Center Wavelength: | 405-1200 Nm |
| Transmission: | >93% | Isolation: | >35dB |
| Temperature: | -20-70℃ | Crystal Material: | TGG Or TSAG |
| High Light: | 30dB Free Space Optical Isolator,High Power Faraday Optical Isolator,30dB Faraday Isolator |
||

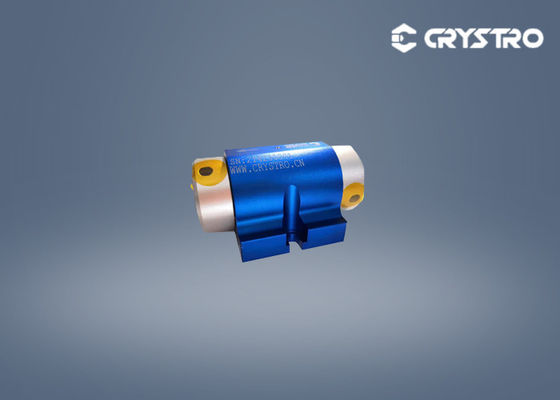

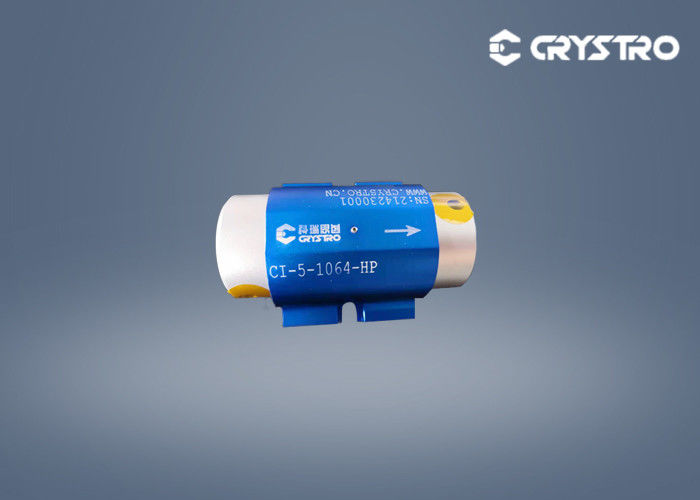

Customized High Power Free Space Faraday Isolator
An optical isolator is a passive magneto-optic device based on the Faraday effect. It is an optical component that allows the transmission of light in only one direction and prevents unwanted feedback into an optical oscillator. Crystro offers isolators that are based on our own TGG or TSAG Faraday crystals of low loss and high optical power threshold.
Specifications:
| UV | VIS | NIR | IR | |
| Center Wavelength | 355nm | 405-980nm | 1030,1064nm | 1319,2000,4500nm |
| Operating Wavelength Range | ≥±10nm | ≥±10nm | ≥±15nm | ≥±10nm |
| Peak Transmission | >93% | >90% | >92% | >90% |
| Peak Isolation | >35dB | >35dB | >30dB | >35dB |
| M2 Degradation | <10% | <10% | <10% | <10% |
| Clear Aperture | 3,4mm or others | 3,4mm or others | 2,3,4,5,8,10,12 or others | 3,4mm or others |
| Optical Power(Average) | 1,5,10W or Specify | 10,30,50W or Specify | 10,30,50,100W or Specify | 10,30,50W or Specify |
| Damage Threshold | 3.5J/cm2@ 10ns | 3.5J/cm2@ 10ns | 10J/cm2@ 10ns | 5J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ | |||
| Tunable Temperature Range | 10-30℃ | |||
Features:
High damage threshold and power handling
Peak Isolation : Range from 30dB to 45dB
Free space input and output
Orthogonal isolated beams
Isolators are available for optional λ/2 plate
All isolators contain escape ports
Applications:
Maintain the light's linear polarization
Avoid deleterious effects of back reflections in laser diodes
Eliminate instability in amplified laser systems caused by ASE
Reduce Nd and Yb oscillations from ASE created by amplifiers
