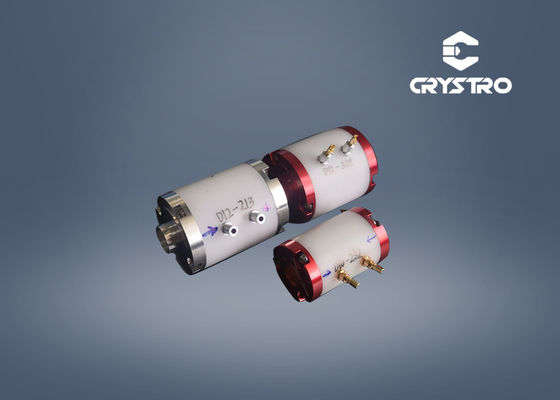

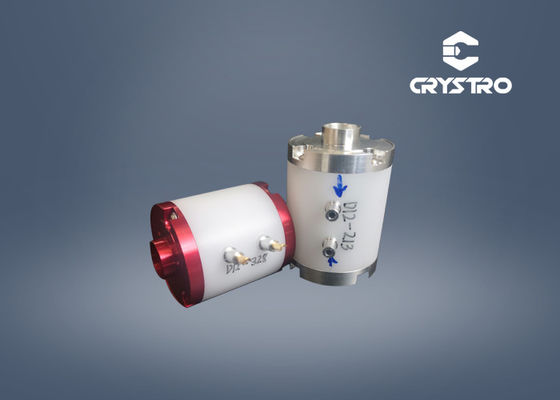

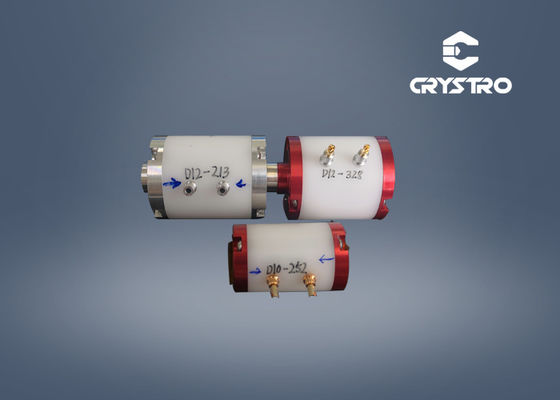

Crystro Electric Optical LGS Series Pockel Cell Q Switch

Crystro Electric Optical LGS Series Pockel Cell Q Switch
Crystro Electric Optical LGS Series Pockel Cell Q Switch Crystro Electric Optical LGS Series Pockel Cell Q Switch Crystro Electric Optical LGS Series Pockel Cell Q Switch

Large Image :  Crystro Electric Optical LGS Series Pockel Cell Q Switch

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRQSW-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: LGS Q-switch Chemical Formula: La3Ga5SiQ14
Density: 5.75 G/cm3 Melting Point: 1470 °C
Refractive Index: 1.89 Deliquescence: No
Resistivity: 1.7×1010 Ω·cm Electro-Optic Coefficients: γ41=1.8 Pm/V, γ11=2.3 Pm/V
Transparency Range: 242-3200 Nm Crystal Structure: Trigonal; A=b=7.453Å,c=6.293Å
High Light:

Crystro Pockel Cell Q Switch

,

Q Switch Pockels Cell

,

Pockel Cell Q Switch








Excellent Electric-Optical Properties LGS LGS Series Q-Switch Pockels Cell







LGS crystal has good mechanical properties, no dissociation, no deliquescent, stable physical and chemical properties, and has very good comprehensive properties. LGS crystal has a wide transmission band, from ultraviolet 242nm-3550nm all have high transmittance. The LGS (LG-EO-Q) series Q-switch (Pockels Cell) is a practical electro-optic device that can be used in medium output energy lasers to partially take the place of DKDP and LiNbO3 series Q-switches.





Features:

  • LGS -based Q-switch (Pockels cell);
  • For wavelengths up to 3.2μm;
  • Transmitted Wavefront Distortion: < l/4;
  • Damage threshold: >900MW/cm2 (@1064nm, 10ns, typical, not guaranteed);
  • LGS available for medium power systems, partially take place of DKDP and LiNbO3 series Q-switches.



Main Properties:



Chemical Formula La3Ga5SiQ14
Crystal Structure Trigonal; a=b=7.453Å,c=6.293Å
Density 5.75 g/cm3
Melting Point 1470 °C
Transparency Range 242 - 3200 nm
Refractive Index 1.89
Electro-Optic Coefficients γ41=1.8 pm/V, γ11=2.3 pm/V
Resistivity 1.7×1010 Ω·cm
Deliquescence No
Thermal Expansion Coefficients α11=5.15×10-6 /K (⊥Z-axis) ; α33=3.65×10-6 /K (∥Z-axis)
