High Damage Threshold LGS Pockels Cell Electro Optic EO Q Switch

Certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
I'm Online Chat Now

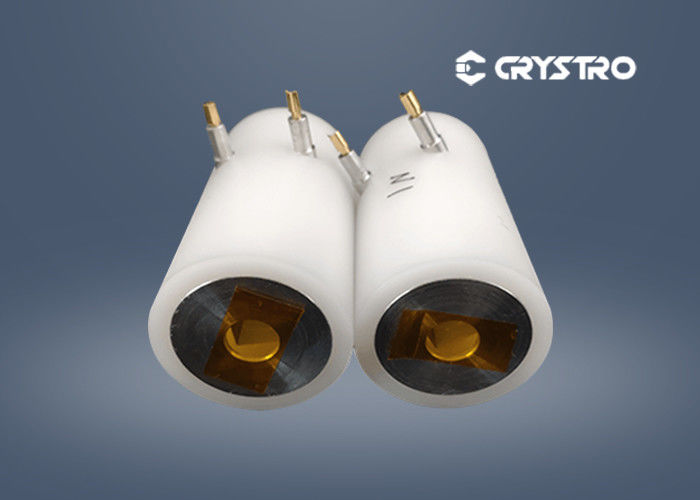

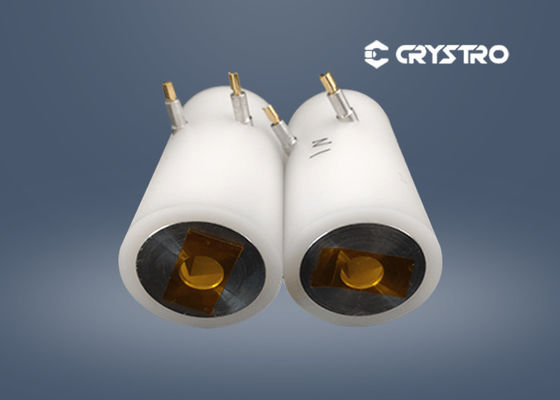

High Damage Threshold LGS Pockels Cell Electro Optic EO Q Switch

High Damage Threshold LGS Pockels Cell Electro Optic EO Q Switch
High Damage Threshold LGS Pockels Cell Electro Optic EO Q Switch High Damage Threshold LGS Pockels Cell Electro Optic EO Q Switch High Damage Threshold LGS Pockels Cell Electro Optic EO Q Switch

Large Image :  High Damage Threshold LGS Pockels Cell Electro Optic EO Q Switch

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRQSW-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: LGS Q-switch Chemical Formula: La3Ga5SiQ14
Density: 5.75 G/cm3 Melting Point: 1470 °C
Refractive Index: 1.89 Deliquescence: No
Resistivity: 1.7×1010 Ω·cm Crystal Structure: Trigonal; A=b=7.453Å,c=6.293Å
Transparency Range: 242 - 3200 Nm Electro-Optic Coefficients: γ41=1.8 Pm/V, γ11=2.3 Pm/V
High Light:

Electro Optic EO Q Switch

,

LGS Electro Optic Q Switch

,

LGS EO Q Switch






High Damage Threshold LGS Crystal Series Electro-Optic EO Q-Switch Pockels Cell



Introduction :

LGS Series Electro-optic (EO) Q-switch Pockels Cell is a new kind of EO Q-switch, which is designed by use of a La3Ga5SiQ14(LGS) crystal. LGS crystal is one kind of optically material with a very high damage threshold (about 9 times as that of LN), excellent E-O coefficient, high-temperature stability The LGS (LG-EO-Q)series Q-switch(Pockels Cell) is a practical electro-optic device that can be used in medium output energy lasers to partially take the place of DKDP, RTPand LiNb03 series Q-switches.





Features :

  • For wavelengths up to 3.2μm;
  • Transmitted Wavefront Distortion: < l/4;
  • Damage threshold: >900MW/cm2 (@1064nm, 10ns);
  • LGS available for medium power systems, partially take place of DKDP and LiNbO3 series Q-switches.



Main Properties :



Chemical Formula La3Ga5SiQ14
Crystal Structure Trigonal; a=b=7.453Å,c=6.293Å
Density 5.75 g/cm3
Melting Point 1470 °C
Transparency Range 242 - 3200 nm
Refractive Index 1.89
Electro-Optic Coefficients γ41=1.8 pm/V, γ11=2.3 pm/V
Resistivity 1.7×1010 Ω·cm
Deliquescence No
Thermal Expansion Coefficients α11=5.15×10-6 /K (⊥Z-axis) ; α33=3.65×10-6 /K (∥Z-axis)



Product details :

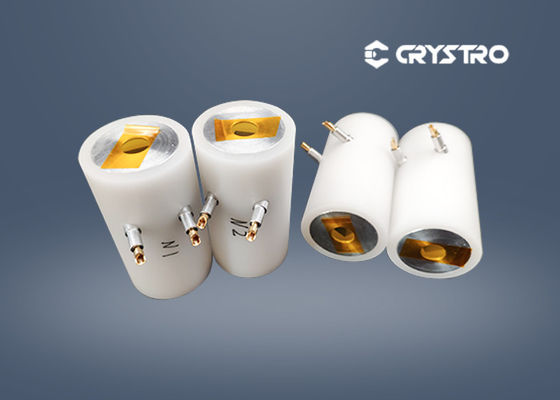

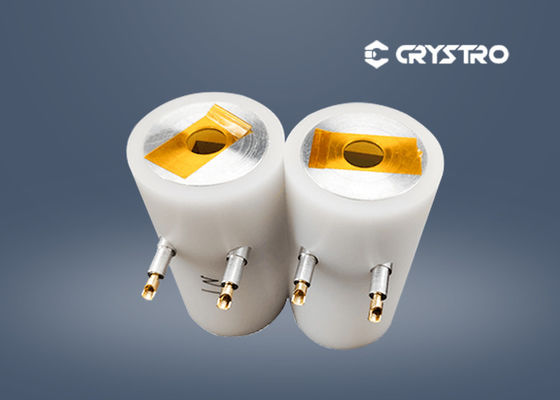

High Damage Threshold LGS Pockels Cell Electro Optic EO Q Switch 0
