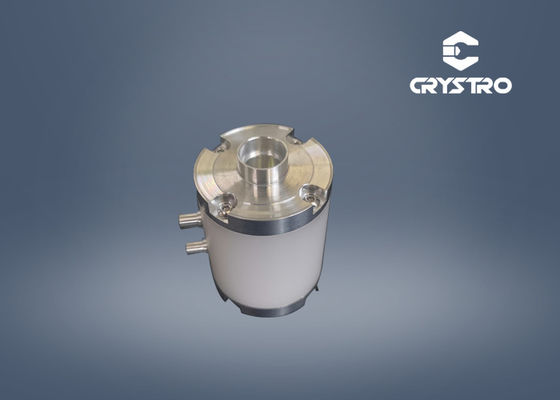

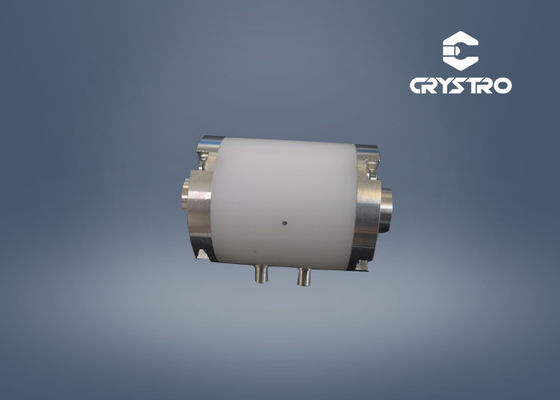

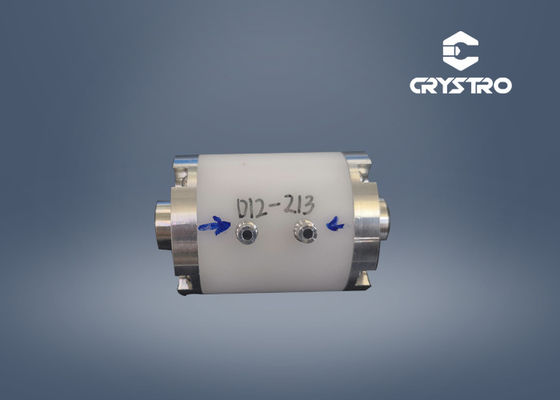

Crystro Electro Optic LGS Crystal Pockel Cell Q Switch

Crystro Electro Optic LGS Crystal Pockel Cell Q Switch
Crystro Electro Optic LGS Crystal Pockel Cell Q Switch Crystro Electro Optic LGS Crystal Pockel Cell Q Switch Crystro Electro Optic LGS Crystal Pockel Cell Q Switch

Large Image :  Crystro Electro Optic LGS Crystal Pockel Cell Q Switch

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRQSW-5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: LGS Q-switch Density: 5.75 G/cm3
Melting Point: 1470 °C Refractive Index: 1.89
Resistivity: 1.7×1010 Ω·cm Deliquescence: No
Electro-Optic Coefficients: γ41=1.8 Pm/V, γ11=2.3 Pm/V Transparency Range: 242 - 3200 Nm
High Light:

LGS Pockel Cell Q Switch

,

Crystro Pockel Cell Q Switch

,

Crystro Electro Optic Q Switch




Excellent Electro-Optic Performance LGS Crystal Pockels Cell For Q-Switching



Introduction:



(LGS crystal) is an optically nonlinear material with a high damage threshold, high electro-optical coefficient, and excellent electro-optical performance. The electro-optical coefficient value remains stable in a large temperature range. The crystal has good mechanical properties, no dissociation, no deliquescent, stable physical and chemical properties, and has very good comprehensive properties. LGS crystal has a wide transmission band, from ultraviolet 242nm-3550nm all have high transmittance. Can be applied to electro-optic modulation, electro-optic q-switch.





LGS material Properties :



Chemical Formula La3Ga5SiQ14
Crystal Structure Trigonal; a=b=7.453Å,c=6.293Å
Density 5.75 g/cm3
Melting Point 1470 °C
Transparency Range 242 - 3200 nm
Refractive Index 1.89
Electro-Optic Coefficients γ41=1.8 pm/V, γ11=2.3 pm/V
Resistivity 1.7×1010 Ω·cm
Deliquescence No
Thermal Expansion Coefficients α11=5.15×10-6 /K (⊥Z-axis) ; α33=3.65×10-6 /K (∥Z-axis)





Features :

  • LGS -based Q-switch (Pockels cell);
  • LGS available for medium power systems, partially take place of DKDP and LiNbO3 series Q-switches.
  • Damage threshold: >900MW/cm2 (@1064nm, 10ns, typical, not guaranteed);
  • For wavelengths up to 3.2μm;
  • Transmitted Wavefront Distortion: < l/4;









Product details :

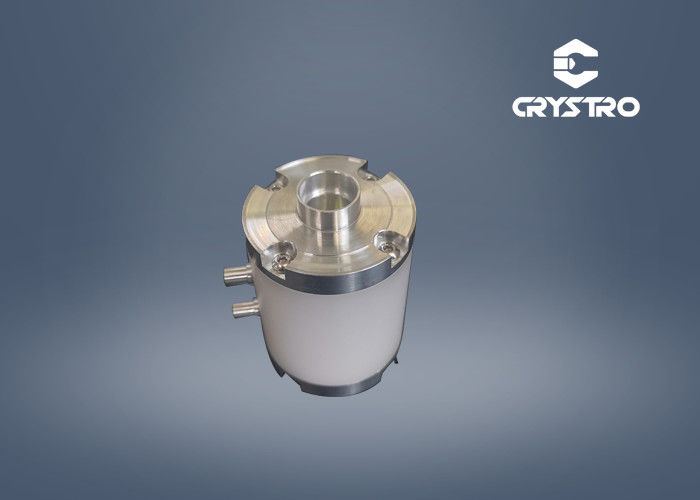

Crystro Electro Optic LGS Crystal Pockel Cell Q Switch 0
