| Product Name: | LGS Q-switch | Chemical Formula: | La3Ga5SiQ14 |
|---|---|---|---|
| Density: | 5.75 G/cm3 | Melting Point: | 1470 °C |
| Refractive Index: | 1.89 | Deliquescence: | No |
| Resistivity: | 1.7×1010 Ω·cm | Crystal Structure: | Trigonal; A＝b＝7.453Å,c＝6.293Å |
| High Light: | Langasite LGS Pockels Cell,LGS Q Switch Pockels Cell,Electro Optical Pockels Cell |
||

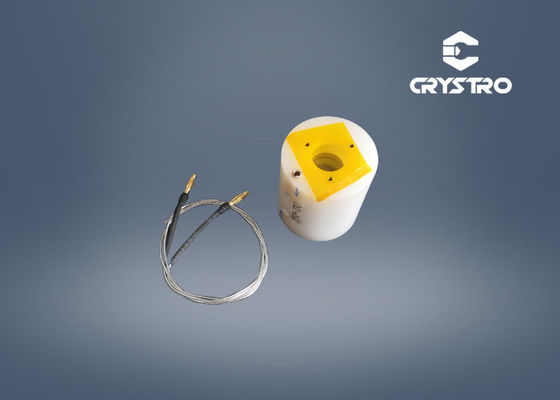

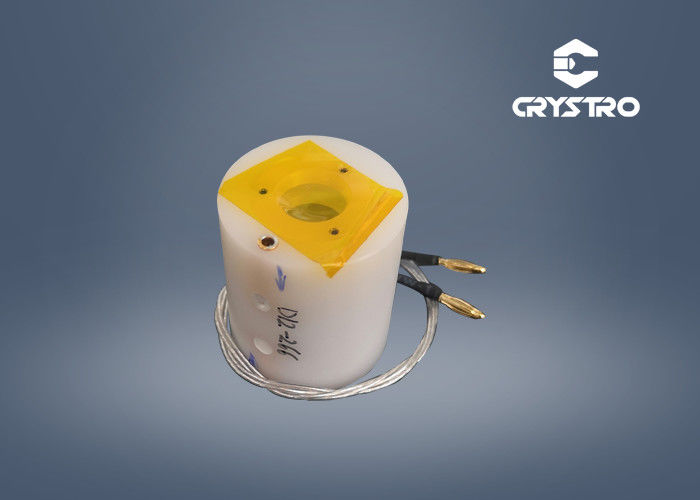

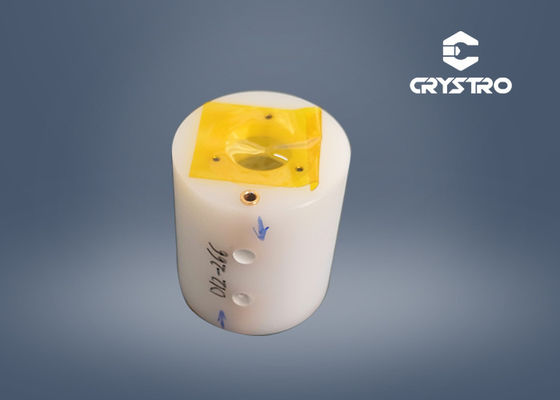

LGS (La3Ga5SiO14) is a multifunctional crystal. The interaction between the electro-optical effect and optical rotation in the functional crystal has been considered and studied. It can be used as an electro-optical crystal. The LGS (LG-EO-Q) series Q-switch (Pockels Cell) is a practical electro-optic device that can be used in medium output energy lasers to partially take the place of DKDP and LiNbO3 series Q-switches.
Main Properties :
| Chemical Formula | La3Ga5SiQ14 | |
| Crystal Structure | Trigonal; a＝b＝7.453Å,c＝6.293Å | |
| Density | 5.75 g/cm3 | |
| Melting Point | 1470 °C | |
| Transparency Range | 242 - 3200 nm | |
| Refractive Index | 1.89 | |
| Electro-Optic Coefficients | γ41＝1.8 pm/V, γ11＝2.3 pm/V | |
| Resistivity | 1.7×1010 Ω·cm | |
| Deliquescence | No | |
| Thermal Expansion Coefficients | α11=5.15×10-6 /K (⊥Z-axis) ; α33=3.65×10-6 /K (∥Z-axis) | |
