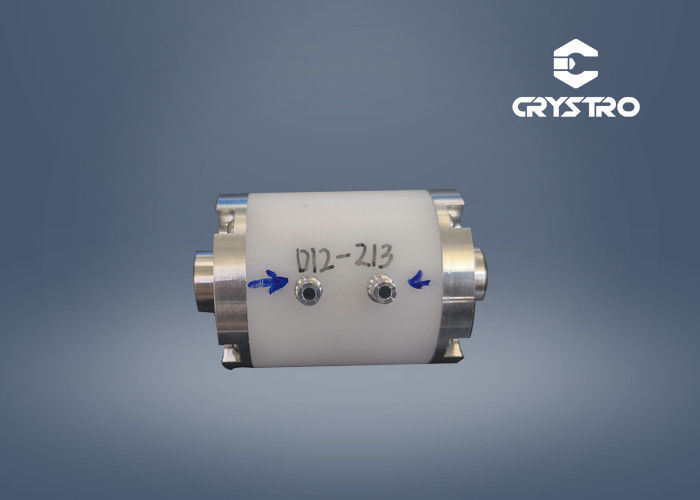

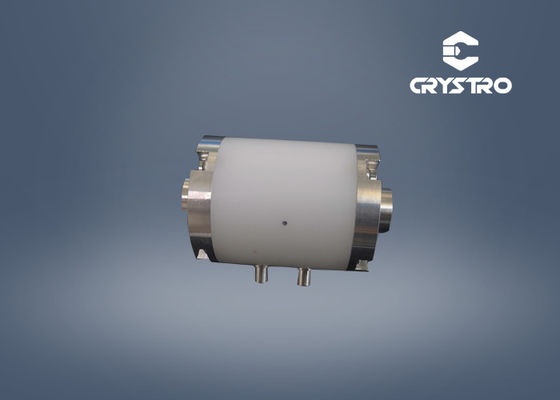

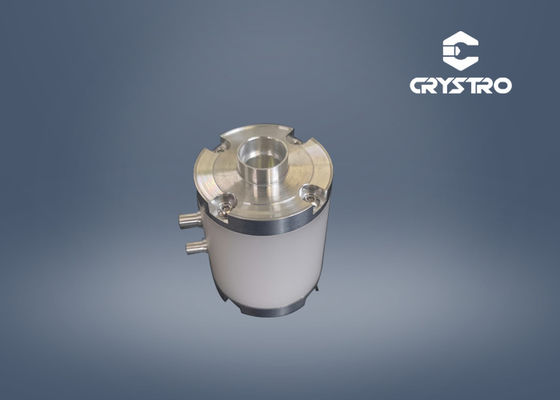

Customized LGS Crystal La3Ga5SiO14 Pockels Cell Q Switch

Customized LGS Crystal La3Ga5SiO14 Pockels Cell Q Switch
Customized LGS Crystal La3Ga5SiO14 Pockels Cell Q Switch Customized LGS Crystal La3Ga5SiO14 Pockels Cell Q Switch Customized LGS Crystal La3Ga5SiO14 Pockels Cell Q Switch

Large Image :  Customized LGS Crystal La3Ga5SiO14 Pockels Cell Q Switch

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRQSW-6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: LGS Q-switch Chemical Formula: La3Ga5SiQ14
Melting Point: 1470 °C Density: 5.75g/cm3
Refractive Index: 1.89 Deliquescence: No
Resistivity: 1.7×1010 Ω·cm Crystal Structure: Trigonal; A=b=7.453Å,c=6.293Å
Transparency Range: 242-3200nm Electro-Optic Coefficients: γ41=1.8 Pm/V, γ11=2.3 Pm/V
High Light:

La3Ga5SiO14 Pockels Cell Q Switch

,

LGS Crystal Pockels Cell Q Switch

,

LGS Crystal Q Switch




Customized LGS Crystal (La3Ga5SiO14) Q-Switch Pockels Cell For Industrial Laser System

Introduction :

LGS crystal (La3Ga5SiO14) is an optically nonlinear material with a high damage threshold, high electro-optical coefficient, and excellent electro-optical performance. The electro-optical coefficient value remains stable in a large temperature range.LGS Series Electro-optic (EO) Q-switch Pockels Cell is a new kind of EO Q-switch, which is designed by use of a La3Ga5SiQ14(LGS) crystal. LGS crystal is one kind of optically material with a very high damage threshold (about 9 times that of LN), excellent E-O coefficient, high-temperature stability.







Main Properties :



Chemical Formula La3Ga5SiQ14
Crystal Structure Trigonal; a=b=7.453Å,c=6.293Å
Density 5.75 g/cm3
Melting Point 1470 °C
Transparency Range 242 - 3200 nm
Refractive Index 1.89
Electro-Optic Coefficients γ41=1.8 pm/V, γ11=2.3 pm/V
Resistivity 1.7×1010 Ω·cm
Deliquescence No
Thermal Expansion Coefficients α11=5.15×10-6 /K (⊥Z-axis) ; α33=3.65×10-6 /K (∥Z-axis)





Advantages :

  • For wavelengths up to 3.2μm;
  • Transmitted Wavefront Distortion: < l/4;
  • Damage threshold: >900MW/cm2 (@1064nm, 10ns);
  • LGS available for medium power systems, partially take place of DKDP and LiNbO3 series Q-switches.





Product details :



Customized LGS Crystal La3Ga5SiO14 Pockels Cell Q Switch 0
