| Name: | LGS Q-switch | Chemical Formula: | La3Ga5SiQ14 |
|---|---|---|---|
| Density: | 5.75g/cm3 | Melting Point: | 1470 °C |
| Deliquescence: | No | Refractive Index: | 1.89 |
| Resistivity: | 1.7×1010 Ω·cm | Crystal Structure: | Trigonal; A＝b＝7.453Å,c＝6.293Å |
| Transparency Range: | 242-3200nm | Electro-Optic Coefficients: | γ41＝1.8 Pm/V, γ11＝2.3 Pm/V |
| High Light: | LGS Crystal EO Q Switch,5.75 g/cm3 LGS EO Q Switch,La3Ga5SiQ14 LGS Q Switch |
||

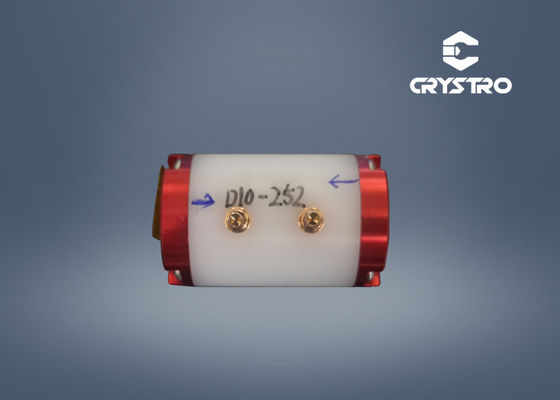

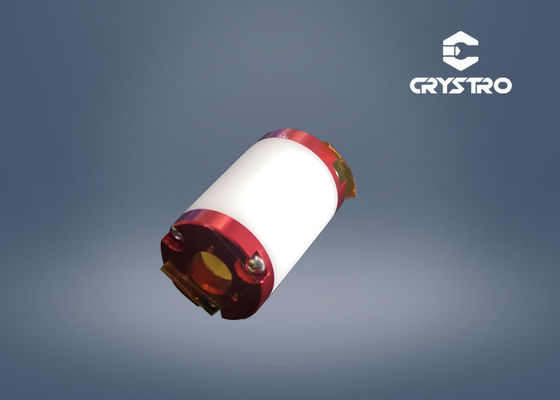

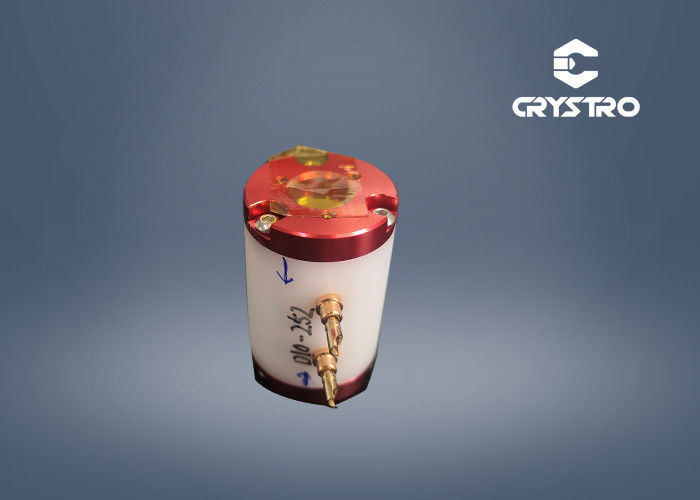

The LGS (LG-EO-Q) series Q-switch (Pockels Cell) is a practical electro-optic device that can be used in medium output energy lasers to partially take the place of DKDP and LiNbO3 series Q-switches. The LGS electro-optic Q switch passes light along the Z direction of the crystal and applies an electric field along the X direction, which can make full use of the lateral electro-optic effect of the crystal to realize the Q-switch function of the LGS crystal.
Main Properties :
| Chemical Formula | La3Ga5SiQ14 | |
| Crystal Structure | Trigonal; a＝b＝7.453Å,c＝6.293Å | |
| Density | 5.75 g/cm3 | |
| Melting Point | 1470 °C | |
| Transparency Range | 242 - 3200 nm | |
| Refractive Index | 1.89 | |
| Electro-Optic Coefficients | γ41＝1.8 pm/V, γ11＝2.3 pm/V | |
| Resistivity | 1.7×1010 Ω·cm | |
| Deliquescence | No | |
| Thermal Expansion Coefficients | α11=5.15×10-6 /K (⊥Z-axis) ; α33=3.65×10-6 /K (∥Z-axis) | |
