| Product Name: | LGS Q-switch | Chemical Formula: | La3Ga5SiQ14 |
|---|---|---|---|
| Density: | 5.75g/cm3 | Melting Point: | 1470 °C |
| Deliquescence: | No | Refractive Index: | 1.89 |
| Structure: | Trigonal; A＝b＝7.453Å,c＝6.293Å | Resistivity: | 1.7×1010 Ω·cm |
| Electro-Optic Coefficients: | γ41＝1.8 Pm/V, γ11＝2.3 Pm/V | Transparency Range: | 242-3200nm |
| High Light: | Electro Optic Q Switched Device,LGS Pockel Cell Q Switch,LGS Electro Optic Q Switch |
||

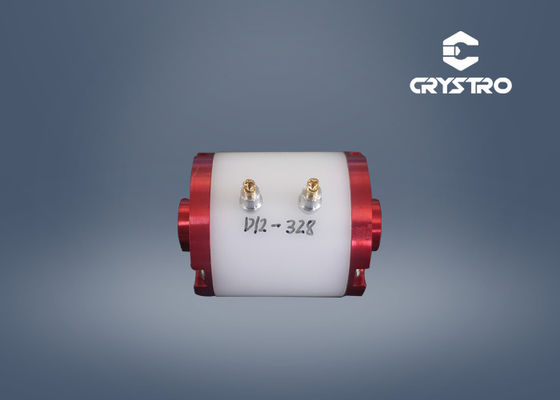

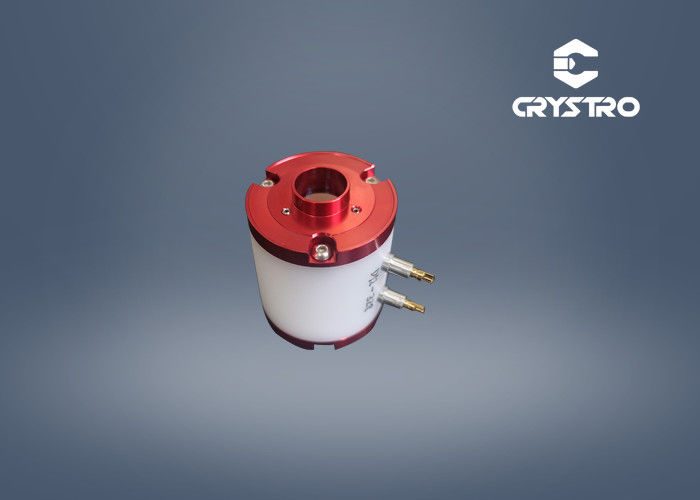

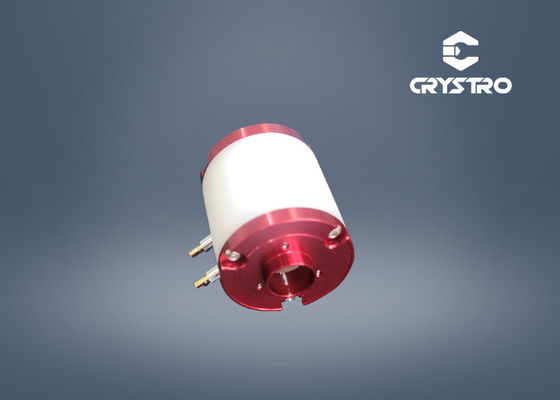

The LGS (LG-EO-Q) series Q-switch (Pockels Cell) is a practical electro-optic device that can be used in medium output energy lasers to partially take the place of DKDP and LiNbO3 series Q-switches. LGS crystal is one kind of optically active NLO material with a very high damage threshold (about 9 times that of LN), excellent E-O coefficient, high-temperature stability (better than quartz). Compared with the DKDP switch, it is not deliquescent, has good temperature stability, and can be used in harsh environments. It is an electro-optical switch with excellent performance that can meet different application fields.
Main Properties :
| Chemical Formula | La3Ga5SiQ14 | |
| Crystal Structure | Trigonal; a＝b＝7.453Å,c＝6.293Å | |
| Density | 5.75 g/cm3 | |
| Melting Point | 1470 °C | |
| Transparency Range | 242 - 3200 nm | |
| Refractive Index | 1.89 | |
| Electro-Optic Coefficients | γ41＝1.8 pm/V, γ11＝2.3 pm/V | |
| Resistivity | 1.7×1010 Ω·cm | |
| Deliquescence | No | |
| Thermal Expansion Coefficients | α11=5.15×10-6 /K (⊥Z-axis) ; α33=3.65×10-6 /K (∥Z-axis) | |
