Product Details:
Payment & Shipping Terms:
|
| Product Name: | Faraday Isolator | Material: | TGG Or TSAG |
|---|---|---|---|
| Center Wavelength: | 405-1200nm | Peak Transmission: | ＞93% |
| Clear Aperture: | 5mm | Temperature: | -20-70℃ |
| Peak Isolation: | ＞35dB | Optical Power: | 10,30,50,100W |
| High Light: | Crystro Faraday Optical Isolator,Crystro Free Space Isolator,5mm Faraday Optical Isolator |
||

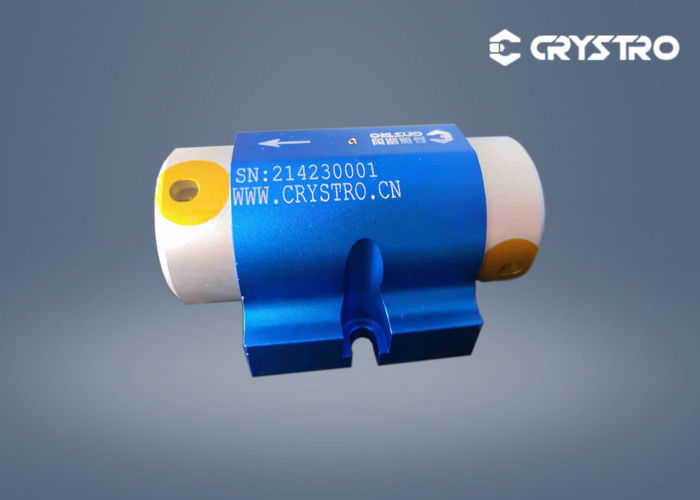

An optical isolator is a passive magneto-optic device based on the Faraday effect. It is an optical component that allows the transmission of light in only one direction and prevents unwanted feedback into an optical oscillator. Crystro offers isolators that are based on our own TGG or TSAG Faraday crystals of low loss and high optical power threshold.
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
Superior Performance and Reliability
High Isolation / Low Insertion Loss
Low, Medium, and High Power Options
High Power Models with Exit Ports for
Return Signal Monitoring or Beam Injection
User Tunable or Fixed Wavelength
Wide Tuning Range
Broadband Optical Isolator Models
