Product Details:
Payment & Shipping Terms:
|
| Product Name: | Free-space Isolator | Material: | TGG Or TSAG |
|---|---|---|---|
| Center Wavelength: | 405-1200nm | Peak Transmission: | ＞93% |
| Clear Aperture: | 3.5mm | Temperature: | -20-70℃ |
| Peak Isolation: | ＞35dB | Optical Power: | 10,30,50,100W |
| High Light: | High Power Optical Isolator,Free Space TGG Isolators,3.5mm High Power Isolator |
||

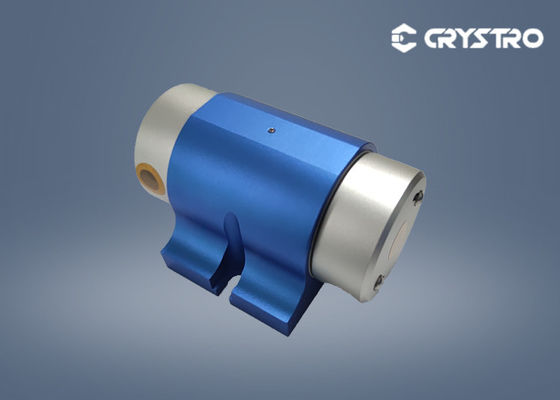

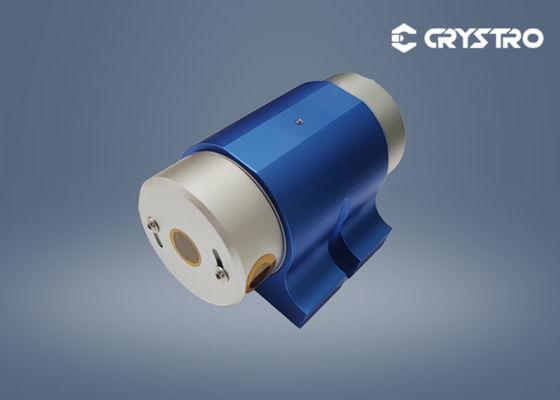

Free-Space Optical Isolators incorporate a Faraday Rotator and are specifically designed and manufactured to provide superior performance with high isolation, transmission, and power densities. Crystro's own magneto-optic crystal TGG, TSAG has the char of high extinction ratio, low absorption, low loss, etc. It is used in optical isolator to achieve reliable isolation and stable performance
| Material | TGG or TSAG |
| Center Wavelength | 405-1200 nm |
| Operating Wavelength Range | ≥±10nm |
| Peak Transmission | >93% |
| Peak Isolation | >35dB |
| M2 Degradation | <10% |
| Clear Aperture | 2-20 nm or others |
| Optical Power(Average) | 10,30,50W or Specify |
| Damage Threshold | 10J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ |
| Tunable Temperature Range | 10-30℃ |
